Remove/Check/Install Front Axle Brake Pads - AR42.10-P-1610GWX

Model 463.234

up to model year 2019

with code ZQ0 (G 500 4x42)

Model 463.255

up to model year 2019

with code MUK2 (USA or Canada vehicle model designation)

with code ZQ0 (G 500 4x4 ² )

Model 463.274

up to model year 2019

with code LQ0 (G650 Landaulet)

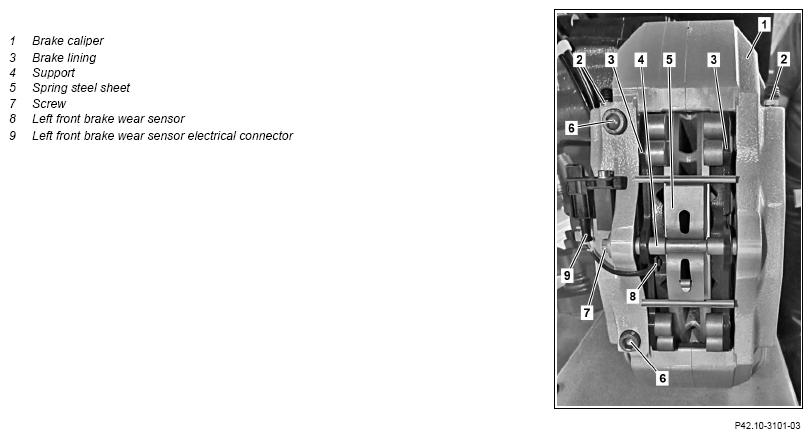

Fig 1: Front Axle Brake Pads Components Location - Model 463.255 Up To Model Year 2019 With Code(s) MUK2 and ZQ0

Courtesy of MERCEDES-BENZ USA

	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Remove/install
1	Open hood	Model 463.234 as of model year 2013 up to model year 2019 with code ZQ0 (G 500 4x42)	AR88.40-P-1000GG
2	Clean area around cap on expansion reservoir for brake fluid	Cleaner	*BR00.45-Z-1025-04A
3	Unscrew the cap on the brake fluid expansion reservoir and suction off some brake fluid	This prevents the expansion reservoir overflowing when the brake piston is pushed back.
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
4	Raise vehicle	Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x4² )	AR00.60-P-1000G
5	Detach wheel-and-tire assembly at the front		AR40.10-P-1100GWX
6	Detach left front brake wear sensor (8) from electrical connection for left front brake wear sensor (9)
7	Carefully pull left front brake wear sensor (8) out of brake lining (3)
8	Remove bolt (7) and pull support (4) out of spring steel sheet (5)	Bolt for anti-rattle spring support	*BA42.10-P-1006-02B
9	Remove spring steel sheet (5)
10	Remove break pads (3) from brake caliper (1)	Only break pads (3) approved by Mercedes-Benz may be installed, and only as complete sets. Do not apply brake paste or lubricants to the break pads (3) and brake calipers (1).
	Check
11	Check spring steel sheet (5) and support (4) for damage and condition	If a problem arises ↓ Replace spring steel sheet (5) or support (4)
12	Check brake linings (3) for wear and condition
		Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x4² ) Replace break pads (3) as a complete set only. In event of damage or excessive wear ↓ Replace break pads (3)	AP42.10-P-4252G
13	Check brake disc for wear and condition
		Model 463.234 as of model year 2012 up to model year 2019 with code ZQ0 (G 500 4x42) Replace brake discs as a complete set only. In event of damage or excessive wear ↓ Replace brake disc	AP42.10-P-4258G
			AR42.10-P-0230GWX
14	Check brake caliper (1) and dust boots of brake piston for leak tightness and damage	If a problem arises ↓ Replace brake caliper (1)	AR42.10-P-0070GWX
15	Press back brake piston using resetting device	Secure remaining brake pistons using two wedges against slipping out.
		Wedge	Fig 3
		Resetting device With sluggish brake pistons ↓ Replace brake caliper (1)	Fig 2
			AR42.10-P-0070GWX
	Clean
16	Clean contact surfaces of brake linings (3) on brake caliper (1) and brake piston	Do not use sharp-edged or pointed objects. The brake caliper (1) or the dust boots of the brake pistons can otherwise be damaged.
		Cleaner	*BR00.45-Z-1025-04A
17	Install in the reverse order
18	Operate the brake pedal several times until brake linings (3) contact the brake discs	Firm resistance should be noticeable at the brake pedal.
	Check
19	Check/correct brake fluid level in expansion reservoir
			AP42.50-P-4210G
20	Carry out brake test on the test stand
