(Parking Brake Cable Removal And Installation - AR42.20-P-0545GG)

Model 460, 461 (except 461.392)

Model 463 (except 463.270/271)

up to model year 2013

Courtesy of MERCEDES-BENZ USA

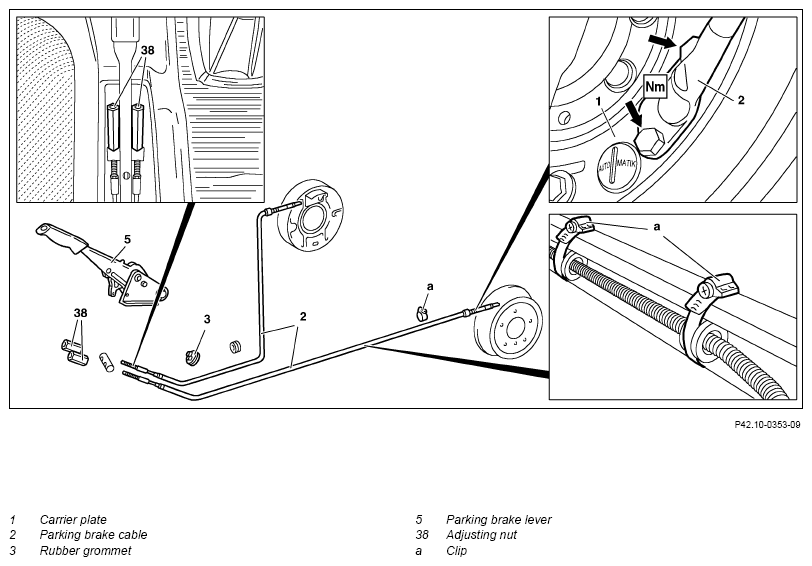

Shown here is a drum brake

Courtesy of MERCEDES-BENZ USA

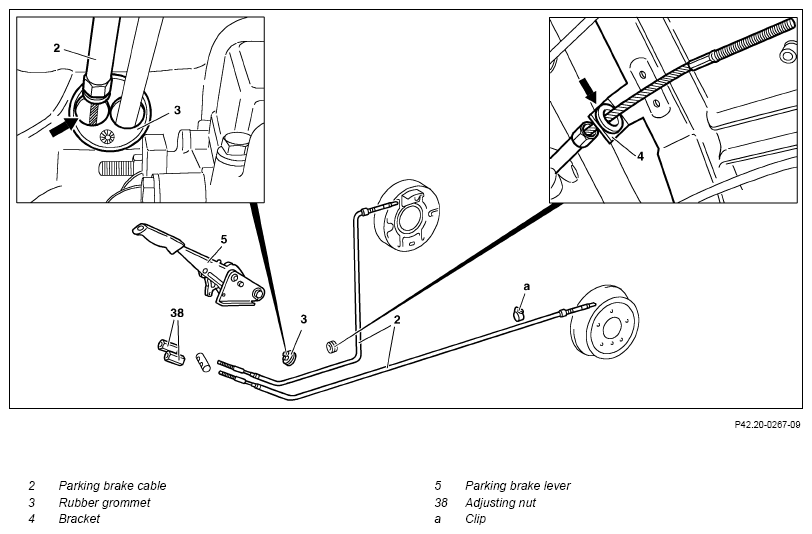

Shown here is a drum brake

Courtesy of MERCEDES-BENZ USA

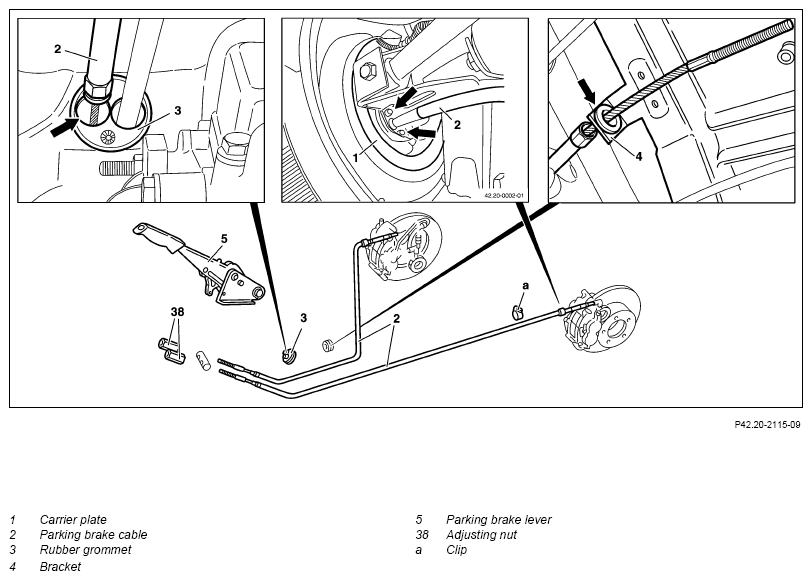

Shown here is a disk brake

Shown on left side

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove cover from parking brake lever (5)	Model 463.202/222/236/237/243/244/245/246/247/248/249/250/254/303/309/322/323/332/333/340/341 up to model year 2013
			AR68.20-P-2311-01AA
		Mounting wedge	Fig 1
1.2	Turn back cover on parking brake lever (5)	Model 460, 461 (except 461.302/304/305/331/332/333/334/340/342/343/344/345/346/392) Model 463.306/336/346 up to model year 2013
1.3	Remove center console	Model 463.204/206/207/208/209/220/221/224/225/227/228/230/231/232/233/240/241/300/304/307/308/320/321/324/325/327/328/330/331 up to model year 2013
		Model 463.204/206/207/208/209/220/221/224/225/227/228/230/231/232/233/240/241/300/304/307/308/320/321/324/325/327/328/330/331 up to model year 2003	AR68.20-P-2000A
1.4	Remove the trim from the left side of the console	Model 461.302/305/332/333/334/340/342/343/344/345/346
2	Unscrew adjusting nuts (38)
3.1	Remove brake shoes at rear axle	Vehicles with drum brakes
		Vehicles with drum brakes	AR42.10-P-0165GG
3.2	Remove parking brake shoes	Vehicles with disk brakes
		Remove/install brake shoes of parking brake Model 461 (except 461.392) with disk brakes on the rear axle Model 463 (except 463.270/271) up to model year 2013 with disk brakes on the rear axle	AR42.20-P-0530B
4	Detach parking brake cable (2) from carrier plate (1)	Model 460, 461 (except 461.392) Model 463 (except 463.270/271) as of 12/1/00 up to model year 2013 Model 463 (except 463.270/271) up to 11/30/00 up to model year 2013 Screw/bolt, hand brake cable to carrier plate	*BA42.20-P-1002-01B
5	Remove clamps (a) from trailing arms

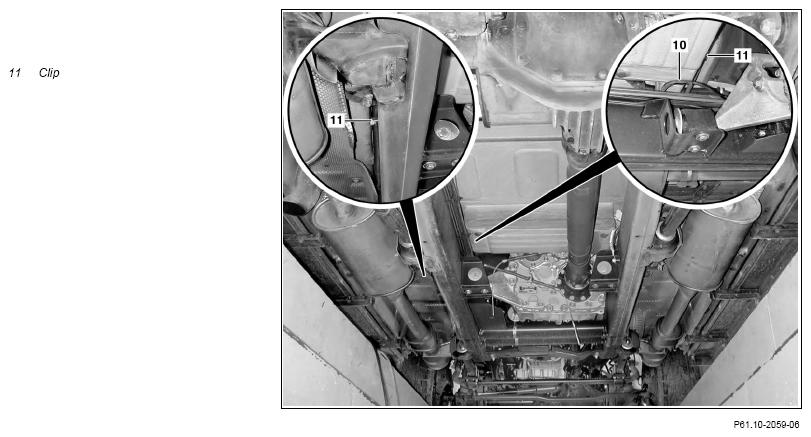

6	Remove clamps (11) of parking brake cables (2) from vehicle floor	Apply preservation to threaded pin.
		Wax for vehicle underside (1 l container)	*BR00.45-Z-1002-05A
7	Pull parking brake cable (2) out of rubber grommet (3) on vehicle floor	Apply soapy water.
8	Pull parking brake cables (2) out of brackets (4)	Check parking brake cable (2) before reinstalling for damage and ease of movement, replace if necessary. Note different lengths of parking brake cables (2).
9	Install in the reverse order
	Check
10	Check parking brake adjustment, adjust parking brake if necessary	Vehicles with disk brakes at the rear axle	AR42.20-P-0540GI
		Vehicles with drum brakes at the rear axle	AR42.20-P-0540GG

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
