(Remove/Install Brake Shoes Of Parking Brake - AR42.20-P-0530B)
Model 461
with disk brakes at the rear axle
Model 463 (except 463.270/271)
up to model year 2013
with disk brakes at the rear axle
| Remove/install | |||
| 1 | Remove brake disc | Model 461 with disk brakes at the rear axle Model 463 (except 463.234/270/271) up to model year 2013 except code 979 (Special protection MB Guard) with disk brakes at the rear axle |
AR42.10-P-0240GG |
| 2 | Unhook lower return spring (1) | ||
| Fig 2 | |||

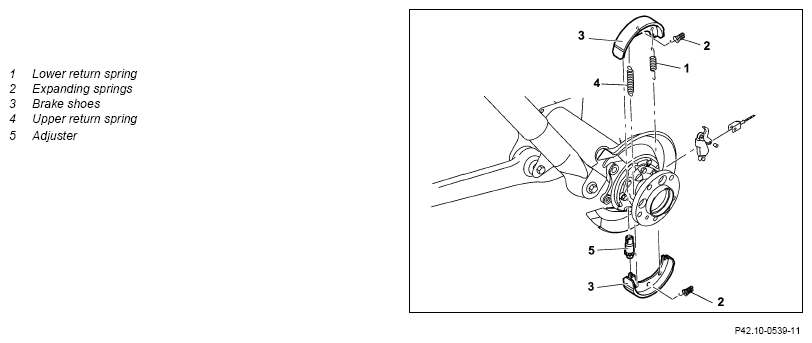

| 3 | Remove expanding springs (2) | Fig 1 | |
| 4 | Remove brake shoes (3) together with the upper return spring (4) and remove brake adjuster (5) | ||
| 5 | Install in the reverse order | ||
| 6 | Check adjustment of parking brake, adjust if necessary | AR42.20-P-0540GI |
