(Checking And Adjusting Axle Load-Dependent Brake (ALB) - AR42.80-P-1600GI)
MODEL 463 up to 31.12.99
without electronic brake force distribution
| Checking | |||
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | All models | AH42.50-P-0001-01A | |
| Notes on repairs to brake system | All models | AH42.00-P-0003-01A | |
| 1 | Determine the rear axle load and load the vehicle with weights if necessary | Fig 1 | |

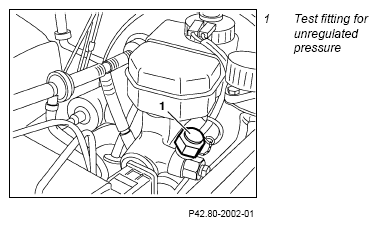

| 2 | Connect pressure tester to test connection for unregulated pressure (1). | Pressure tester (hydraulic single/dual circuit brake systems) |
|
| 3 | Connect pressure tester to test connection for regulated rear-axle pressure (2). | Pressure tester (hydraulic single/dual circuit brake systems) |
|
| 4 | Use the brake pedal jack to apply pressure to the brake pedal, continuing until the pressure gauge indicates an entry pressure of 100 bar in the front-axle brake circuit. | Fig 2 | |
| 5 | Check the output pressure at the test connection, rear axle controlled pressure (2) or the brake caliper or wheel brake cylinder of the rear axle | *BE42.80-P-1001-01D | |
| *BE42.80-P-1002-01D | |||
| Adjust | |||

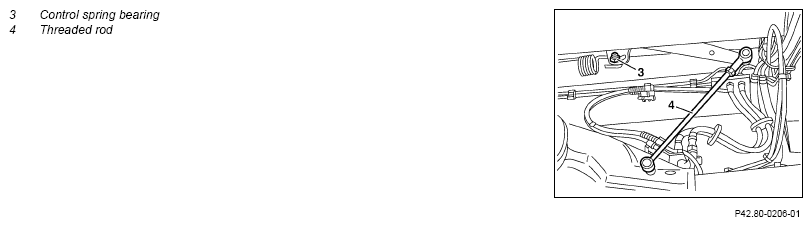

| 6 | Adjusting exit pressure | Only carry out if the output pressure deviates from the adjustment pressure. Extending the threaded rod (4) increases the pressure Shortening the threaded rod (4) reduces the pressure. |
|
| *BE42.80-P-1001-01D | |||
| *BE42.80-P-1002-01D | |||
| 7 | Check the output pressure at the test connection for controlled rear axle pressure (2) or the brake caliper or wheel brake cylinder of the rear axle again | Only carry out if the output pressure has been adjusted. | *BE42.80-P-1001-01D |
| *BE42.80-P-1002-01D | |||
| 8 | Detach pressure tester | ||
| 9 | Bleed brake system | Only on vehicles without test connection for uncontrolled pressure (1) or test connection for rear axle controlled pressure (2). |
AR42.10-P-0010GG |
| *BA42.10-P-1001-02B | |||
| *BA42.10-P-1001-08A |
TEST VALUES FOR ALB CONTROLLER
| Number | Designation | Model 463 to 99 Rear axle spring: yellow Automatic load-dependent brake pressure control spring: yellow/blue |
Model 463 to 99 Rear axle spring: white Automatic load-dependent brake pressure control spring: yellow |
|||
|---|---|---|---|---|---|---|
| BE42.80-P-1001-01D | Output pressure of ALB controller (input pressure ALB controller 100 bar) with rear axle load (from 900 kg to 1500 kg) |
900 kg | Specified pressure | bar | 44 (±2) | 46 (±2) |
| 1000 kg | Specified pressure | bar | 50 (±2) | 50 (±2) | ||
| 1100 kg | Specified pressure | bar | 55 (±2) | 54 (±2) | ||
| 1200 kg | Specified pressure | bar | 59 (±2) | 58 (±2) | ||
| 1300 kg | Specified pressure | bar | 63 (±2) | 62 (+2) | ||
| 1400 kg | Specified pressure | bar | - | - | ||
| 1500 kg | Specified pressure | bar | - | - | ||
| BE42.80-P-1002-01D | Output pressure of ALB controller (input pressure ALB controller 100 bar) with rear axle load (from 1600 kg to 2400 kg) |
1600 kg | Specified pressure | bar | ||
| 1700 kg | Specified pressure | bar | - | - | ||
| 1800 kg | Specified pressure | bar | - | - | ||
| 1900 kg | Specified pressure | bar | - | - | ||
| 2000 kg | Specified pressure | bar | - | - | ||
| 2100 kg | Specified pressure | bar | - | - | ||
| 2200 kg | Specified pressure | bar | - | - | ||
| 2300 kg | Specified pressure | bar | - | - | ||
| 2400 kg | Specified pressure | bar | - | - | ||
TEST VALUES FOR ALB CONTROLLER
| Number | Designation | Model 463 to 99 Rear axle spring: yellow/orange Automatic load-dependent brake pressure control spring: yellow/blue |
Model 463 to 99 load uprating stage 1 and 2 Rear axle spring: lilac Automatic load-dependent brake pressure control spring: green |
|||
|---|---|---|---|---|---|---|
| BE42.80-P-1001-01D | Output pressure of ALB controller (input pressure ALB controller 100 bar) with rear axle load (from 900 kg to 1500 kg) |
900 kg | Specified pressure | bar | 44 (±2) | |
| 1000 kg | Specified pressure | bar | 50 (±2) | 36 (±2) | ||
| 1100 kg | Specified pressure | bar | 55 (±2) | 40 (+2) | ||
| 1200 kg | Specified pressure | bar | 59 (±2) | 43 (±2) | ||
| 1300 kg | Specified pressure | bar | 63 (±2) | 46 (±2) | ||
| 1400 kg | Specified pressure | bar | - | - | ||
| 1500 kg | Specified pressure | bar | - | - | ||
| BE42.80-P-1002-01D | Output pressure of ALB controller (input pressure ALB controller 100 bar) with rear axle load (from 1600 kg to 2400 kg) |
1600 kg | Specified pressure | bar | ||
| 1700 kg | Specified pressure | bar | - | - | ||
| 1800 kg | Specified pressure | bar | - | - | ||
| 1900 kg | Specified pressure | bar | - | - | ||
| 2000 kg | Specified pressure | bar | - | - | ||
| 2100 kg | Specified pressure | bar | - | - | ||
| 2200 kg | Specified pressure | bar | - | - | ||
| 2300 kg | Specified pressure | bar | - | - | ||
| 2400 kg | Specified pressure | bar | - | - | ||
TEST VALUES FOR ALB CONTROLLER
| Number | Designation | Model 463 to 99 Special protection Rear axle spring: lilac Axle load-dependent brake spring: green |
Model 463 to 99 Rear axle spring: yellow/orange Automatic load-dependent brake pressure control spring: yellow/blue |
|||
|---|---|---|---|---|---|---|
| BE42.80-P-1001-01D | Output pressure of ALB controller (input pressure ALB controller 100 bar) with rear axle load (from 900 kg to 1500 kg) |
900 kg | Specified pressure | bar | 33 (±2) | |
| 1000 kg | Specified pressure | bar | - | 38 (+2) | ||
| 1100 kg | Specified pressure | bar | - | 42 (±2) | ||
| 1200 kg | Specified pressure | bar | - | 45 (±2) | ||
| 1300 kg | Specified pressure | bar | - | 47 (±2) | ||
| 1400 kg | Specified pressure | bar | - | - | ||
| 1500 kg | Specified pressure | bar | - | - | ||
| BE42.80-P-1002-01D | Output pressure of ALB controller (input pressure ALB controller 100 bar) with rear axle load (from 1600 kg to 2400 kg) |
1600 kg | Specified pressure | bar | 43 (±2) | 51 (±2) |
| 1700 kg | Specified pressure | bar | 48 (±2) | - | ||
| 1800 kg | Specified pressure | bar | - | 53 (±2) | ||
| 1900 kg | Specified pressure | bar | 49 (±2) | - | ||
| 2000 kg | Specified pressure | bar | 51 (±2) | - | ||
| 2100 kg | Specified pressure | bar | - | - | ||
| 2200 kg | Specified pressure | bar | - | - | ||
| 2300 kg | Specified pressure | bar | - | - | ||
| 2400 kg | Specified pressure | bar | - | - | ||
TEST VALUES FOR ALB CONTROLLER
| Number | Designation | Model 463 to 99 Rear axle spring: yellow/orange Automatic load-dependent brake pressure control spring: yellow/blue |
|||
|---|---|---|---|---|---|
| BE42.80-P-1001-01D | Output pressure of ALB controller (input pressure ALB controller 100 bar) with rear axle load (from 900 kg to 1500 kg) |
900 kg | Specified pressure | bar | |
| 1000 kg | Specified pressure | bar | - | ||
| 1100 kg | Specified pressure | bar | - | ||
| 1200 kg | Specified pressure | bar | - | ||
| 1300 kg | Specified pressure | bar | 47 (±2) | ||
| 1400 kg | Specified pressure | bar | - | ||
| 1500 kg | Specified pressure | bar | - | ||
| BE42.80-P-1002-01D | Output pressure of ALB controller (input pressure ALB controller 100 bar) with rear axle load (from 1600 kg to 2400 kg) |
1600 kg | Specified pressure | bar | 56 (±2) |
| 1700 kg | Specified pressure | bar | - | ||
| 1800 kg | Specified pressure | bar | 60 (±2) | ||
| 1900 kg | Specified pressure | bar | 62 (±2) | ||
| 2000 kg | Specified pressure | bar | 64 (±2) | ||
| 2100 kg | Specified pressure | bar | - | ||
| 2200 kg | Specified pressure | bar | - | ||
| 2300 kg | Specified pressure | bar | - | ||
| 2400 kg | Specified pressure | bar | - | ||
FRONT AXLE FIXED BRAKE CALIPER
| Number | Designation | Model 461, 463 | |
|---|---|---|---|
| BA42.10-P-1001-02B | Bleed screw at front axle fixed brake caliper | Nm | 14 |
BRAKE CYLINDER
| Number | Designation | Model 463 | |
|---|---|---|---|
| BA42.10-P-1001-08A | Bleed screw to rear axle wheel brake cylinder | Nm | 14 |
