Remove/Install Pop-Up Bracket On Tilting/Sliding Roof - AR77.20-P-1700XG

Model 463 as of model year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Remove tilting/sliding roof frame.		AR77.20-P-3000XG

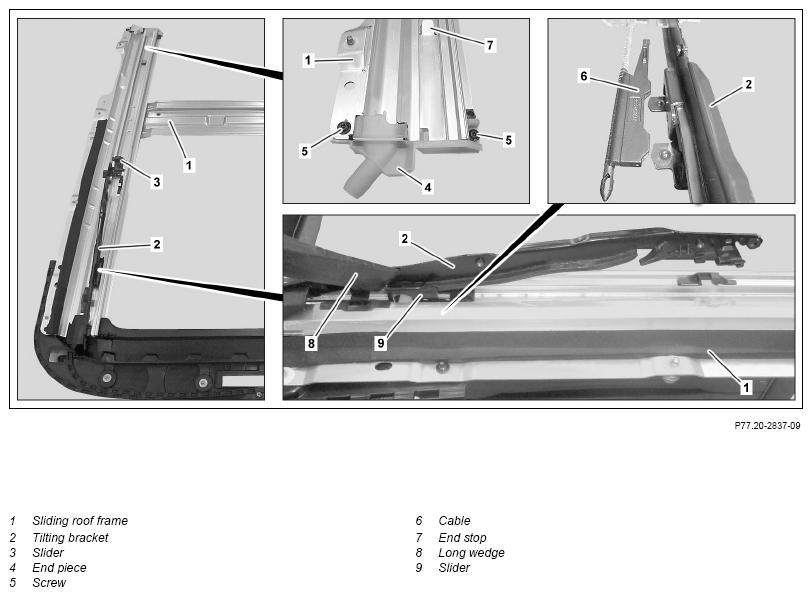

2	Remove screws (5) on left and right side of sliding sunroof frame (1).
3	Remove end pieces (4) on left and right side of sliding sunroof frame (1).	Replace end piece (4).
4	Bend end stop (7) downward.	Bend end stop (7) downward carefully. The end stop (7) will otherwise be damaged.
5	Extend sliders (3) out of sliding sunroof frame} (1).	Insert sliders (3) up to end stop of tilting bracket (2).
6	Use the long wedge (8) to slide the sliders out of the sliding sunroof frame (1) and remove them together with the tilting brackets (2) and the cable (6).	Move sliders (9) to end stop on sliding roof frame (1). Long wedge	Fig 1
7	Unclip cable (6) from tilting brackets (2) and remove.
8	Install in reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
