Remove/Install Guide Tube For Tilting/Sliding Roof Control Cable - AR77.20-P-1410GW

Model 463 (Except 463.202) As Of Model Year 2013 Up To Model Year 2019/Facelift 2012

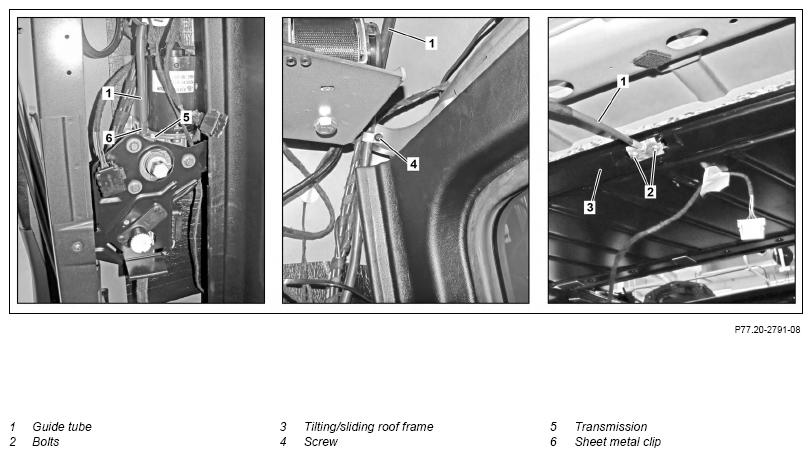

Fig 1: Guide Tube For Tilting/Sliding Roof Control Cable Components Location - Model 463 (Except 463.202) As Of Model Year 2013 Up To Model Year 2019/Facelift 2012

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove operating cable from tilting/sliding roof		AR77.20-P-1400GW
2	Remove headliner	Model 463 (except 463.202/242) as of model year 2013 up to model year 2019	AR68.30-P-4300GW
3	Remove screw/bolts (2)
4	Remove screw (4)
5	Remove guide tube (1) from transmission (5); in this connection, remove panel clip (6) from bracket	Ensure that raised bead on pipe is inserted into slot at transmission (5).
6	Remove guide tube (1)	Guide tube (1) may not be bent during installation, as operating cable will otherwise get stuck.
7	Install in the reverse order
8	Perform functional check
