Adjust Tilting/Sliding Roof Panel - AR77.20-P-1100XG
Model 463 As Of Model Year 2019
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||
| 1 |
Connect XENTRY Diagnosis and perform normalization of the sliding sunroof. | AD00.00-P-2000-04B | |

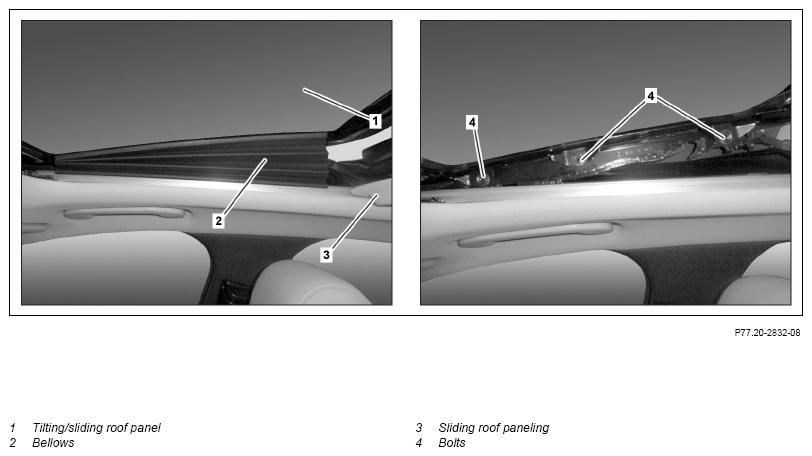

| 2 | Open sliding sunroof trim (3). | ||
| 3 | Remove boot (2) on the left and right from the sliding sunroof. | Extend boot (2) first at the bottom and then at the top. Otherwise the boot (2) will be damaged. |
|
| Adjust | |||
| 4 | Loosen screws (4) on left and right on tilting/sliding roof panel (1). | ||
| 5 | Press tilting/sliding roof panel (1) upward out of the sliding roof cutout. | ||
| 6 | Allow (1) tilting/sliding roof panel to lower back into the sliding roof cutout. | ||
| 7 | Adjust tilting/sliding roof panel (1) to front roof paneling and tighten the front screws (4). | *BE77.20-P-1003-01B | |
| 8 | Adjust tilting/sliding roof panel (1) to rear roof paneling and tighten rear screws (4). | *BE77.20-P-1003-01B | |
| 9 | Adjust tilting/sliding roof panel (1) to center roof paneling and tighten center screws (4). | *BE77.20-P-1003-01B | |
| Check | |||
| 10 | Bring tilting/sliding roof panel (1) into tilt position. | ||
| 11 | Move tilting/sliding roof panel (1) from the tilt position to the open position. | ||
| 12 | Close tilting/sliding roof panel (1). | ||

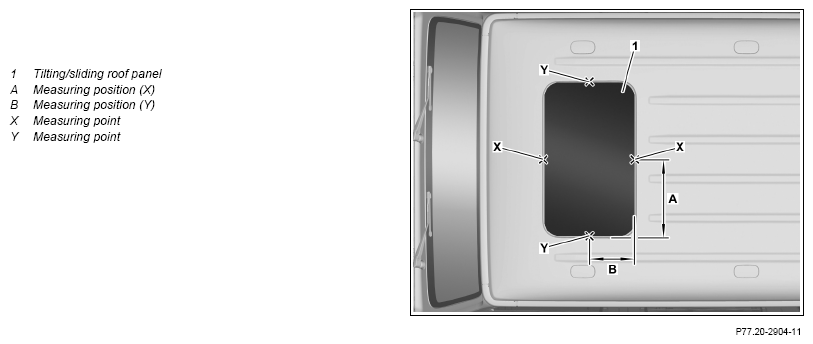

| 13 | Check adjustment of the tilting/sliding roof panel (1) at all measurement positions (X, Y). | If adjustment is not correct, ↓ repeat adjustment at measurement positions (X, Y). |
|
| Install | |||
| 14 | Install left and right boot (2). | ||
| 15 | Close sliding sunroof trim (3). |
TEST VALUES FOR TILTING/SLIDING ROOF
| Number | Designation | Model 463 up to model year 2019 | Model 463 up to model year 2019 | ||
|---|---|---|---|---|---|
| BE77.20-P-1003-01B | Sliding roof adjustment | Measurement position "A" (x) | mm | ≈420 | |
| Front: Lower than roof paneling | mm | - | -2, 2...-0, 1 | ||
| Rear: Higher than roof paneling | mm | - | 0, 1...2, 2 | ||
| Measurement position "B" (y) | mm | ≈250 | |||
| Height of SHD to roof paneling | mm | -1, 0...1, 0 | |||
