Remove Rear Portal - Ar64.20-P-1001-01A
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. | AS00.00-Z-0017-01A | |
| Deburr repair panels. | |||
| General information on body repair | AH60.00-N-0001-01A |
Model 461
Model 463 up to model year 2019
Spot weld milling cutter

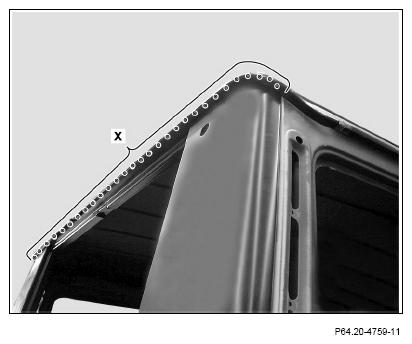

- Cut out spot welds in area X with
spot weld milling cutter.

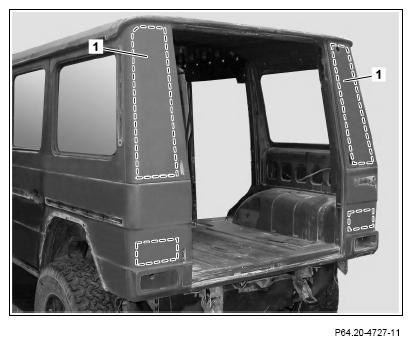

- Separate rear panels (1) along the broken lines using a body jig saw.

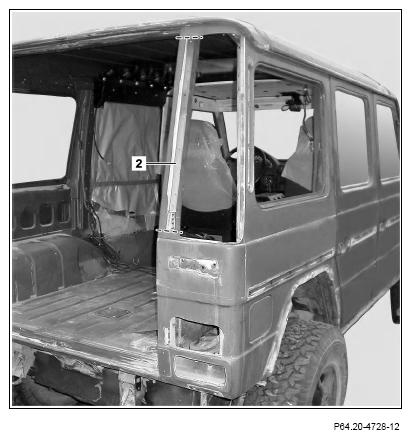

- Separate rear pillar (2) along the broken lines using a body jig saw.
- Carry out operation step 3 in a similar way on the left side of the vehicle.

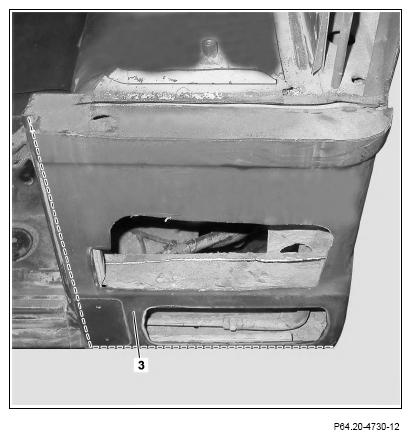

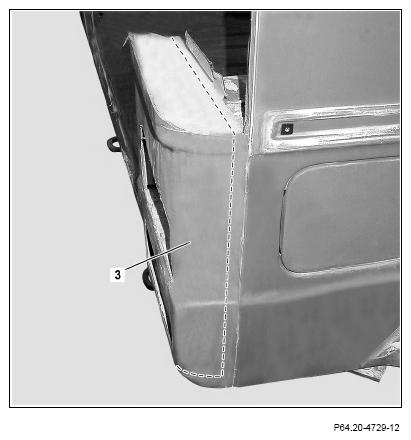

- Separate lower rear panel (3) along the broken line with a body jig saw.
- Separate lower rear panel (3) along the broken line with a body jig saw.
- Carry out operation steps 5 and 6 in a similar way on the left side of the vehicle.

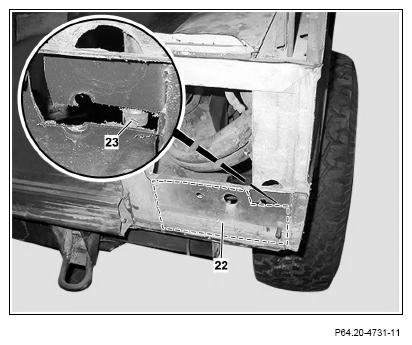

- Detach bleed line (23) from the connector.
- Separate section (22) along the broken line using a body jig saw.

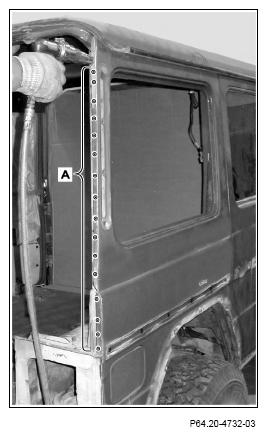

- Expose spot welds in area A.
- Cut out spot welds in area A with spot weld milling cutter.
- Detach remainder of flange in area A.

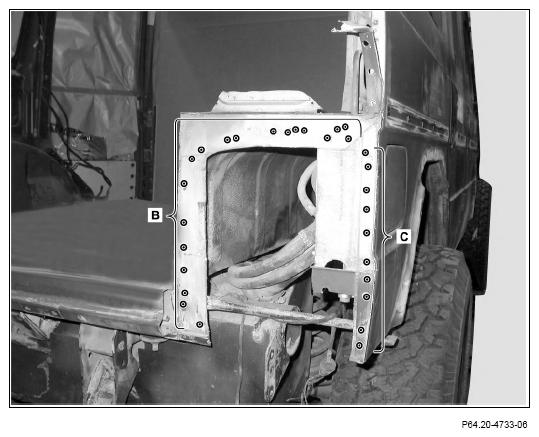

- Expose spot welds in areas B and C with a shaft-mounted round brush.
- Cut out spot welds in areas B and C with
- Detach remaining flanges in areas B and C.
- Carry out operation steps 8 to 15 in a similar way on the left side of the vehicle.

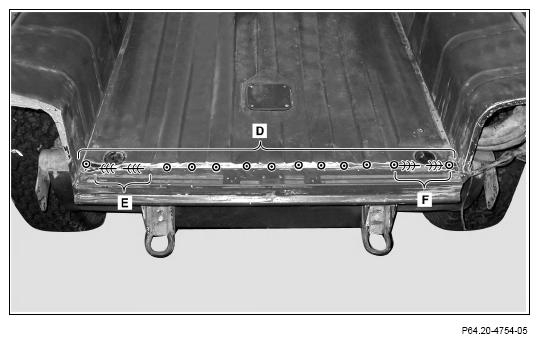

- Expose spot welds in area D with a shaft-mounted round brush.
- Cut out spot welds in area D with
- Cut off spot welds in areas E and F with a ball cutter.

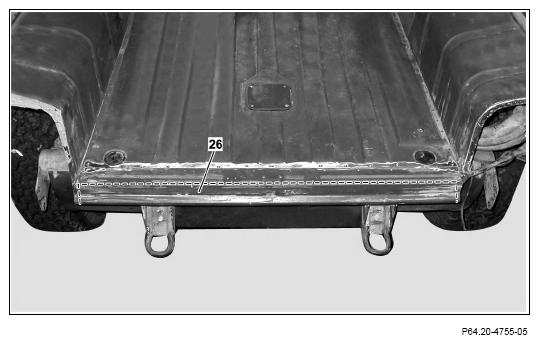

- Separate crossmember (26) along the broken lines using a body jig saw.

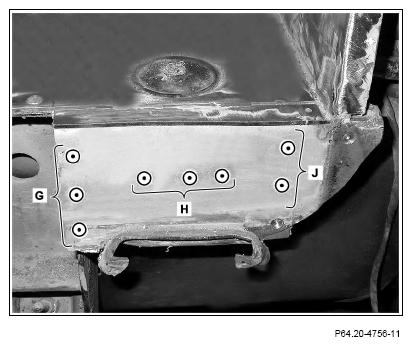

- Cut out spot welds in areas G, H and J with
- Carry out operation step 21 in a similar way on the left side of the vehicle.

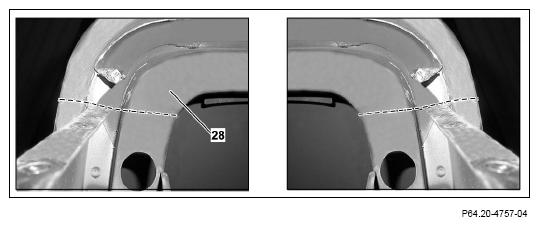

- Separate roof frame (28) along the broken lines using a body jig saw.
- Remove roof frame (28).
- Cut off all remaining flanges in the area of the rear portal.
