Remove Battery Box - Ar64.20-P-0001-01XG

Model 463 as of model year 2019

Additional information can be found in the supporting service repair information.

The safety information in the supporting service information must be observed.

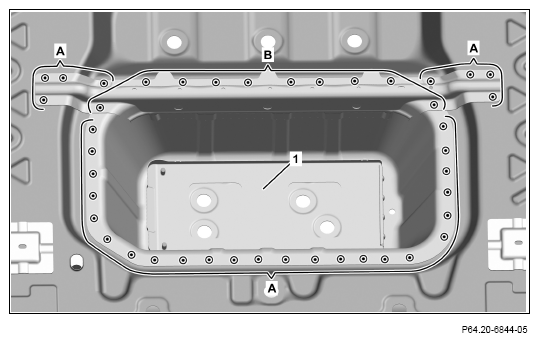

1. Expose spot welds on battery box (1) and cut off (areas A, B).

   Common spot welds on panels located one behind the other must be cut off through two panel thicknesses (area B).

   Courtesy of MERCEDES-BENZ USA

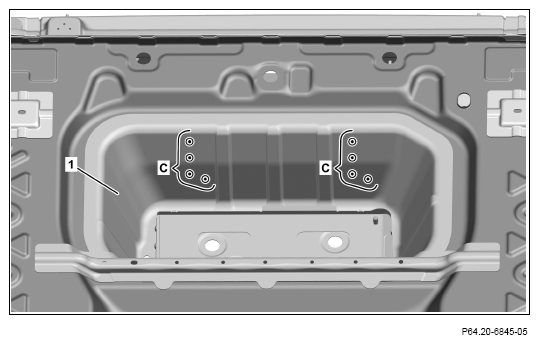

2. Expose spot welds on battery box (1) and cut off (areas C).
3. Remove battery box (1).

   Courtesy of MERCEDES-BENZ USA

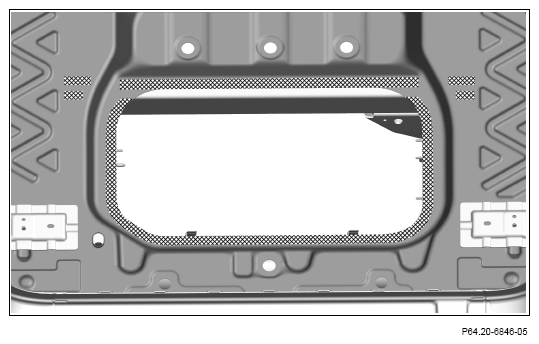

4. Sand down mating surfaces to bare metal in cross-hatched areas.
5. Remove grinding dust and drill chips.

   Courtesy of MERCEDES-BENZ USA

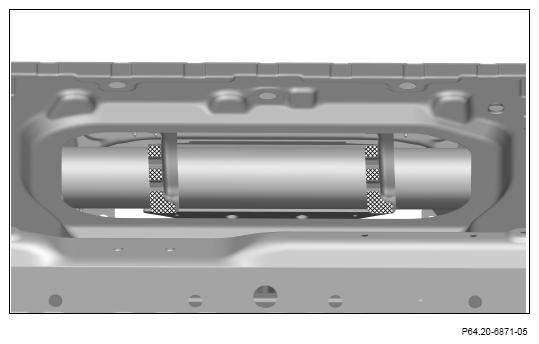

6. Sand down mating surfaces to bare metal in cross-hatched areas.
7. Remove grinding dust and drill chips.

Courtesy of MERCEDES-BENZ USA
