Prepare Mating Surfaces Of Body On Rear Portal For Installation - Ar64.20-P-1001-02A
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working body parts on sharp vehicle parts on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| General information on body repair | AH60.00-N-0001-01A | ||
| Notes on paintwork repairs | AH98.00-P-9408-02A |
Model 461
Model 463 up to model year 2019
Repair materials
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
- Sand down spot weld flanges to bare metal on both sides.
- Coat the insides of the spot weld flanges with.

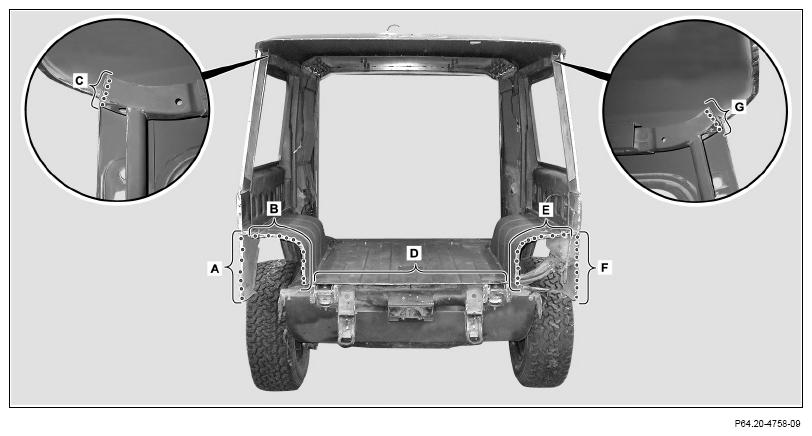

- Grind mating surfaces down to bare metal on both sides in areas A, B, C, D, E, F and G).
- Punch holes in areas A, B, E and F with hole punching pliers.
- Drill holes in areas C and G with a dia. 6 mm drill bit.
