Partially Install Rear Floor Assembly - Ar64.20-P-1310-04XG

Model 463 as of model year 2019

Cab, cab mounting

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the service information.

The safety information must be observed.

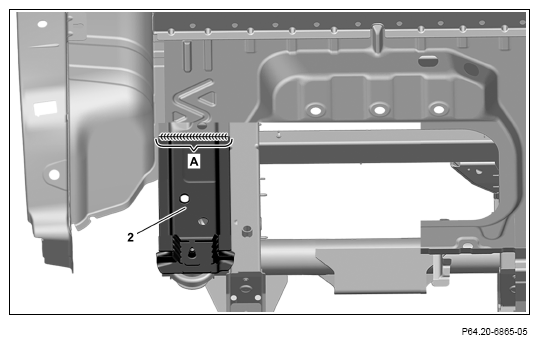

1. Install, fit longitudinal member (2) and fix in place with screw (4).

   Courtesy of MERCEDES-BENZ USA

2. Longitudinal member (2) (area A).

   Perform inert gas welding at intervals and allow to cool down in between. This reduces heat distortion.

3. Surface-grind inert gas weld on longitudinal member (2) (area A).

   Only surface-grind at contact surfaces of rear-end floor (area A).

   Courtesy of MERCEDES-BENZ USA

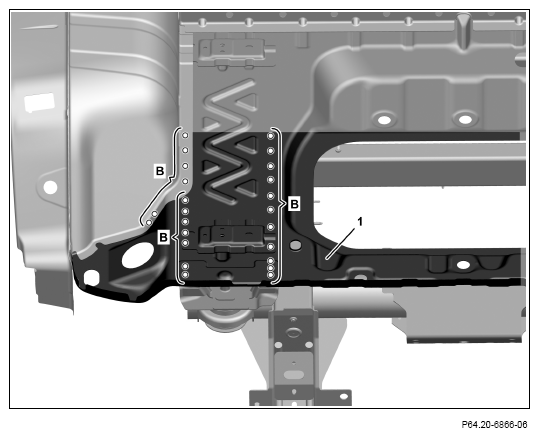

4. Install rear-end floor (1), fit and fix in place.
5. Install, fit and fix in place crossmember.
6. Bend down wheel arch flange.
7. Drill rivet holes in rear-end floor (1) with Ø 6.7 mm (areas B).
8. Bend up wheel arch flange again.
9. Remove rear-end floor (1) and crossmember.
10. Deburr rivet holes on rear-end floor (1) and body on both sides.
11. Remove drilling chips.

    Courtesy of MERCEDES-BENZ USA

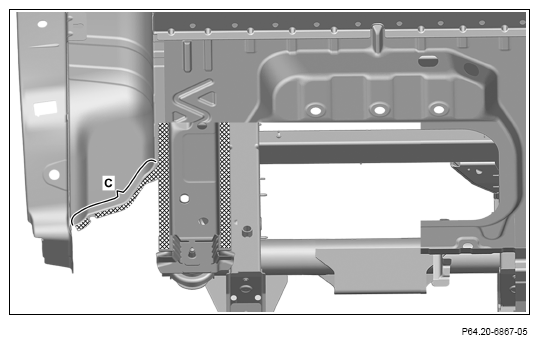

12. Apply 2-component adhesive to body in crosshatched areas.

    Apply 2-component adhesive at underside (area C). 2-component adhesive must also be applied on bent up wheel arch flange.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

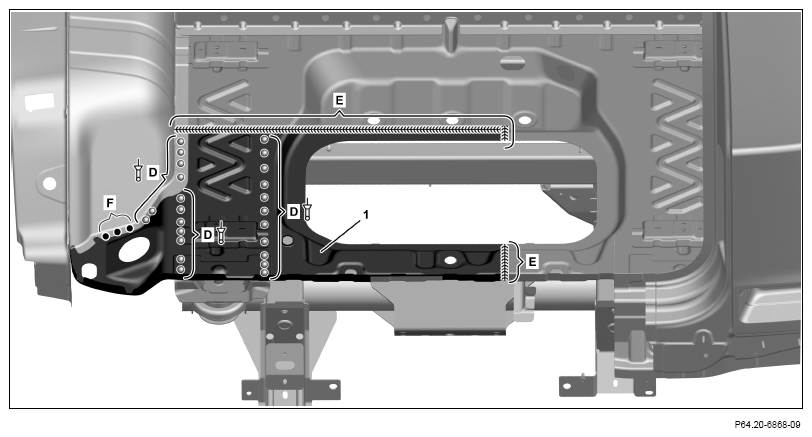

13. Install rear floor (1) and fix in place.
14. Bend down wheel arch flange.
15. Rivet rear-end floor (1) with rivets Ø 6.5x12.5 (areas D).
16. Rear-end floor (1) (area F).
17. Rear-end floor (1) (areas E).

    Perform inert gas welding at intervals and allow to cool down in between. This reduces heat distortion.

18. Surface-grind inert gas welds on rear-end floor (1) (areas E).

    Only surface-grind at fold areas, at contact surfaces of battery box and rear-end center section (areas E).

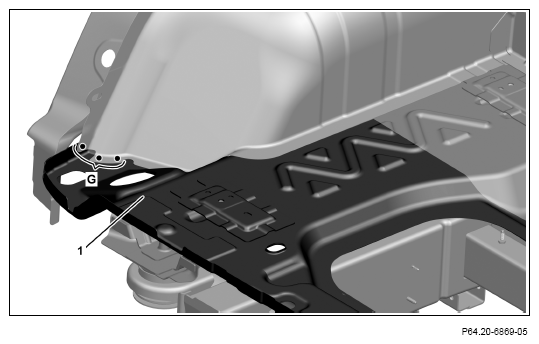

19. Weld in rear floor (1) with (area G).

    Courtesy of MERCEDES-BENZ USA

20. Tighten screw (4) on longitudinal member (2). Model 463 as of model year 2019

    Courtesy of MERCEDES-BENZ USA

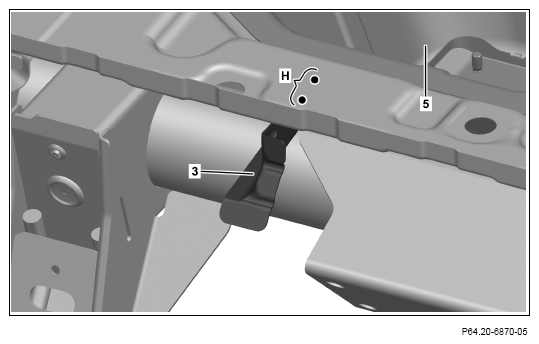

21. Install, fit and fix in place battery box (5).
22. Install, fit and fix in place reinforcement (3).
23. Reinforcement (3) (area H).

Courtesy of MERCEDES-BENZ USA
