Removing And Installing Rear Reading Lamp - AR82.20-P-1120XG

Model 463

as of model year 2019

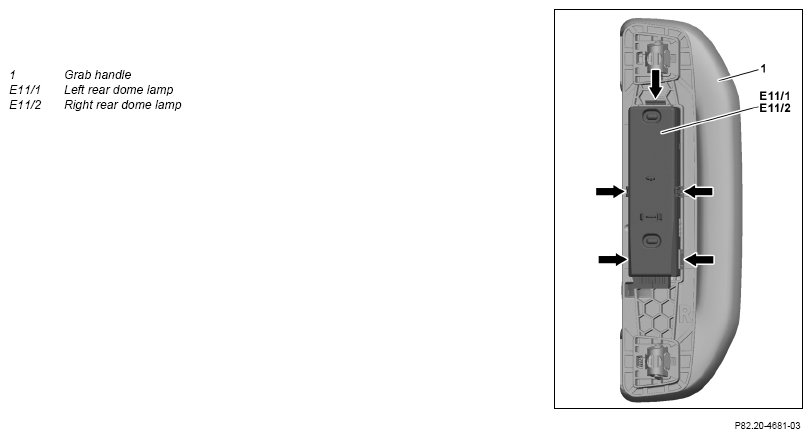

Fig 1: Rear Reading/Dome Lamp Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove grab handle (1) in rear passenger compartment.		AR68.30-P-4330XG
2	Unclip left rear passenger compartment dome lamp (E11/1) or right rear passenger compartment dome lamp (E11/2) (arrows).
3	Install in reverse order.
