Remove/Install Outer Mirror Ambient Lamp - AR82.10-P-0001XG
Model 463
as of model year 2019
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

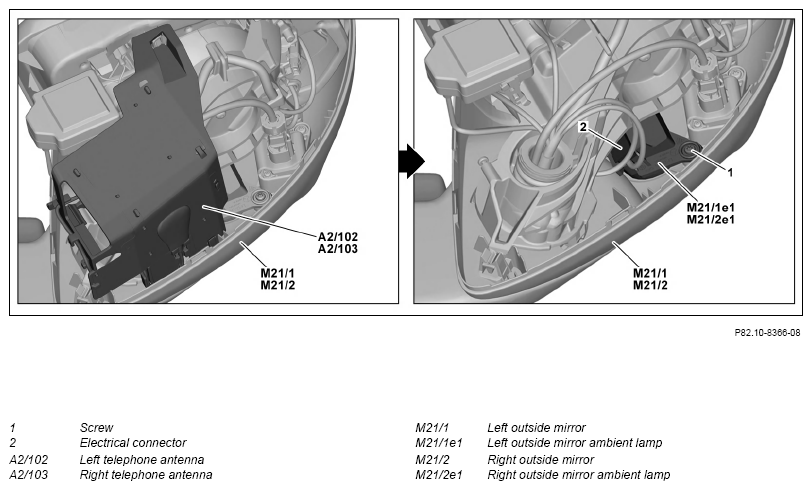

| 1 | Remove mirror housing from left outside mirror (M21/1) or right outside mirror (M21/2). | AR88.70-P-9040XG | |
| 2 | Unclip left telephone antenna (A2/102) or right telephone antenna (A2/103) and place to one side. | ||
| 3 | Unscrew bolt (1). | ||
| 4 | Remove left outside mirror ambient lamp (M21/1e1) or right outside mirror ambient lamp (M21/2e1). | ||
| 5 | Disconnect electrical connector (2). | ||
| 6 | Install in reverse order. |
