Remove/Install Filler Pipe Of Washer Fluid Reservoir - AR82.35-P-6007XG

Model 463

as of model year 2019

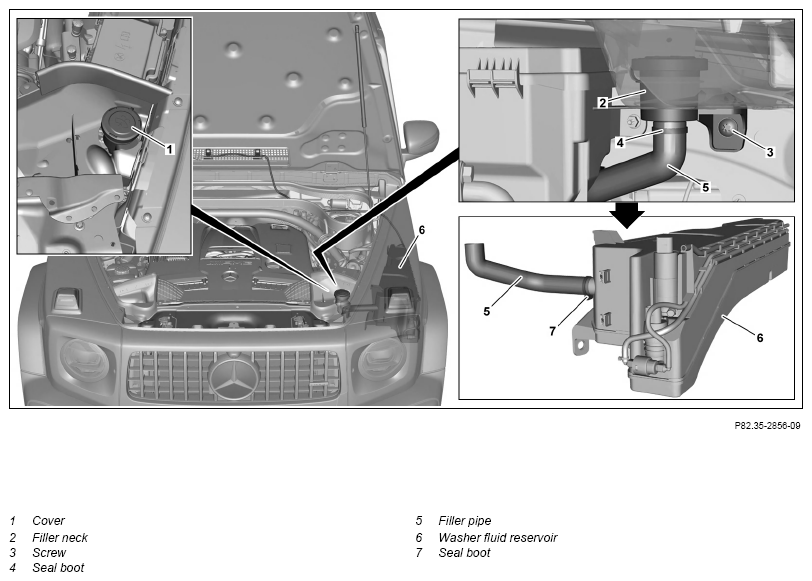

Fig 1: Filler Pipe Of Washer Fluid Reservoir Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of fire and explosion  caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning  caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury  or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin.	Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children.	AS82.35-Z-0001-01A
	Remove/install
1	Open engine hood and raise to upright position.		AR88.40-P-1000XG
2	Open cap (1) and remove from filler neck (2).
3	Remove the screw (3).
4	Open sealing boot (4).	Collect escaping washer fluid in a suitable vessel.
5	Detach filler pipe (5) from filler neck (2) and remove filler neck (2).	Collect escaping washer fluid in a suitable vessel.
6	Release washer fluid reservoir (6) until the sealing boot (7) is accessible.	Secure washer fluid reservoir (6) on vehicle to prevent it from falling.	AR82.35-P-6000XG
7	Open sealing boot (7).
8	Detach filler pipe (5) from washer fluid reservoir (6) and remove filler pipe (5).
9	Install in reverse order.
10	Correct fluid level of windshield washer system.
			AP82.35-P-8210GA
