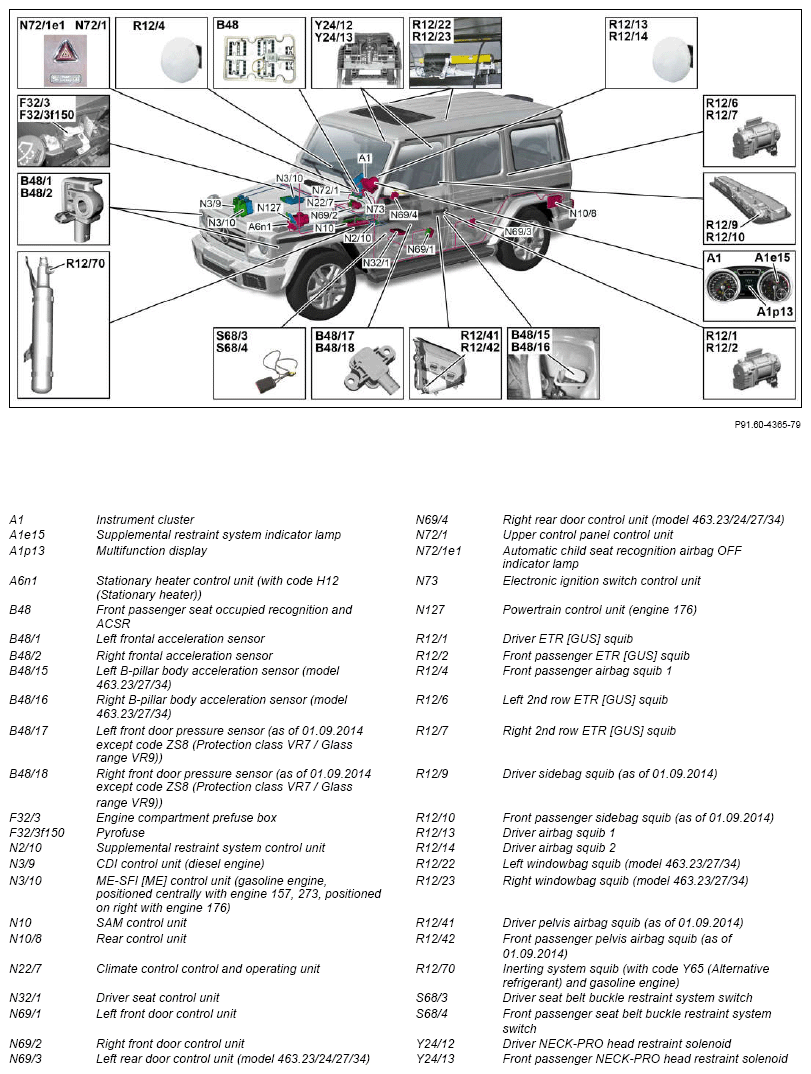

Overview Of System Components For Supplemental Restraint System - GF91.60-P-9996GW
Model 463 (except 463.342)
as of model year 2013 up to model year 2019
Model 463.342
Shown on model 463.23
| Component description for instrument cluster | Model 463 (except 463.342) as of model year 2013 up to model year 2019 | GF54.30-P-6000GW | |
| Model 463.342 as of model year 2017 A1, A1e15, A1p13 | |||
| Stationary heater control unit, component description | Model 463 (except 463.342) as of model year 2013 up to model year 2019 with code H12 (Auxiliary heater) | ||
| Model 463.342 as of model year 2017 with code H12 (Auxiliary heater) A6n1 | GF83.70-P-4066GW | ||
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GW | |
| Component description for CDI control unit | Model 463 (except 463.342) with engine 642.8 as of model year 2013 up to model year 2019 | GF07.16-P-6000OGT | |
| Model 463.342 with engine 642.8 as of model year 2017 N3/9 | |||
| Component description for ME-SFI (ME) control unit | Model 463 (except 463.342) with engine 157.9 as of model year 2013 up to model year 2019 | GF07.61-P-6000MMJ | |
| Model 463 (except 463.342) with engine 176.9 as of model year 2016 up to model year 2019 N3/10 | GF07.61-P-6000MNF | ||
| Model 463 (except 463.342) with engine 273.9 as of model year 2013 up to model year 2019 N3/10 | GF07.61-P-6000MLJ | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GW | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GW | |
| Component description for climate control control and operating unit | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2017 N22/7 |
GF83.40-P-3002GW | |
| Component description for driver seat control unit | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2017 N32/1 |
GF91.29-P-5231GW | |
| Component description for left front door control unit | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2017 N69/1 |
GF72.29-P-6001GW | |
| Component description for right front door control unit | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2017 N69/2 |
GF72.29-P-6009GW | |
| Component description for rear door control unit | Model 463.23/24/27, 463.34 (except 463.342) as of model year 2013 up to model year 2019 N69/3, N69/4 | GF72.29-P-6021GW | |
| Upper control panel control unit, component description | N72/1, N72/1e1 | GF54.21-P-6040GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GW | |
| Drivetrain control unit, component description | Model 463 (except 463.342) with engine 176.9 as of model year 2016 up to model year 2019 N127 | GF54.21-P-2141MNF | |
| Table of contents for function description of supplemental restraint system function | GF91.60-P-0996GW |
