Remove/Install Cooling Line Of Power Steering System - AR46.25-P-3010GW
Model 463 (except 463.322/323)
as of model year 2013 up to model year 2019
Fig 1: Power Steering System Cooling Line Components Location - Model 463 (Except 463.322/323) Up To Model Year 2019
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Remove radiator grille | Model 463 (except 463.322/323) as of model year 2013 up to model year 2019 |
AR88.00-P-2115GW |
| 2 | Remove left headlamp unit | Model 463 (except 463.242/322/323) as of model year 2013 up to model year 2019 |
AR82.10-P-4730GW |
| 3 | Remove left front wheel well lining | Model 463 (except 463.322/323) as of model year 2013 up to model year 2015 |
|
| 4 | Extract hydraulic fluid from power steering expansion reservoir | ||

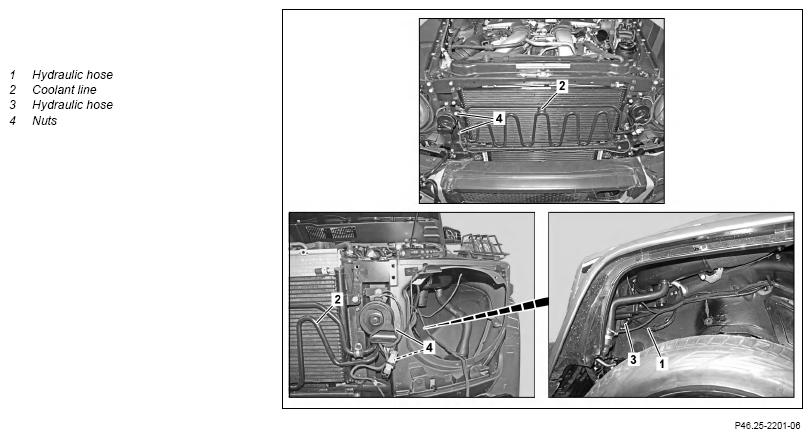

| Fig 2 | |||
| 5 | Thoroughly clean the area surrounding the hydraulic system for the power steering at the connecting points | ||
| 6 | Detach hydraulic hose (1, 3) from coolant line (2) of power steering | ||
| 7 | Collect escaping hydraulic fluid in suitable container | ||

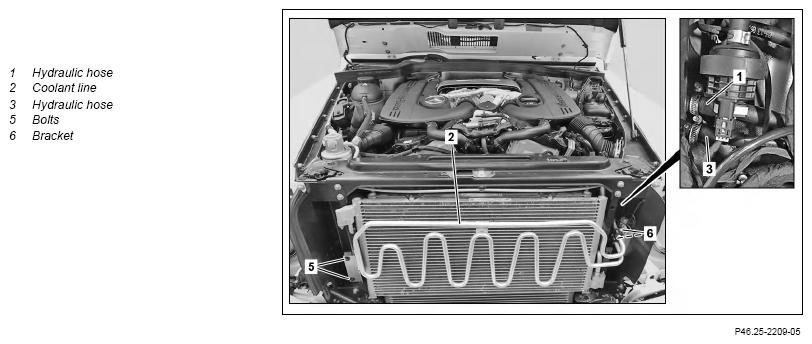

| 8 | Seal exposed connections with plugs | Fig 3 | |
| 9 | Detach left horn | Model 463 (except 463.322/323) as of model year 2013 up to model year 2015 |
|
| 10 | Detach holder (6) | Model 463 (except 463.322/323) as of model year 2016 up to model year 2019 |
|
| 11.1 | Unscrew nuts (4) | Model 463 (except 463.322/323) as of model year 2013 up to model year 2015 |
|
| 11.2 | Remove screws/bolts (5) | Model 463 (except 463.322/323) as of model year 2016 up to model year 2019 |
|
| 12 | Remove coolant line (2) | ||
| Install | |||
| 13 | Install coolant line (2) | ||
| 14.1 | Tighten nuts (4) | Model 463 (except 463.322/323) as of model year 2013 up to model year 2015 |
|
| 14.2 | Screw bolts (5) tight | Model 463 (except 463.322/323) as of model year 2016 up to model year 2019 |
|
| 15 | Install holder (6) | Model 463 (except 463.322/323) as of model year 2016 up to model year 2019 |
|
| 16 | Mount left horn | Model 463 (except 463.322/323) as of model year 2013 up to model year 2015 |
|
| 17 | Remove stop plugs and fit hydraulic hoses (1, 3) to coolant line (2) | ||
| 18 | Add hydraulic fluid to power steering expansion reservoir | Model 463 (except 463.322/323) as of model year 2013 up to model year 2019 |
AR46.20-P-0500-10F |
| 19 | Check connections of installed hoses for leaks | ||
| 20 | Install left front wheel well lining | Model 463 (except 463.322/323) as of model year 2013 up to model year 2015 |
|
| 21 | Install left headlamp unit | Model 463 (except 463.242/322/323) as of model year 2013 up to model year 2019 |
AR82.10-P-4730GW |
| 22 | Install radiator trim | Model 463 (except 463.322/323) as of model year 2013 up to model year 2019 |
AR88.00-P-2115GW |
