Removing, Installing Windowbag - AR91.60-P-0693XG
Model 463
as of model year 2019
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (at least 2 m). | ||
| 2 | Disconnect ground line at battery. | AR54.10-P-0003XG | |
| 3 | Remove roof lining. | AR68.30-P-4300XG | |

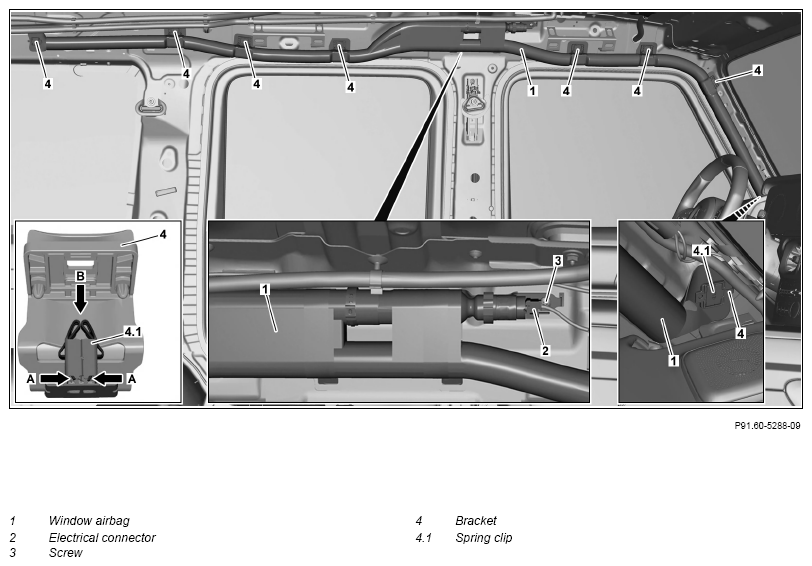

| 4 | Release and disconnect electrical connector (2). | ||
| 5 | Remove the screw (3). | *BA91.60-P-1005-01B | |
| 6 | Insert pliers into openings of spring clips (4.1) and press the clamp shackles (arrows A) together. | ||
| 7 | Remove spring clips (4.1) in clamped position in direction of arrow (B) from holders (4). | ||
| 8 | Unhook gas generator and remove window airbag (1). | ||
| 9 | Install in reverse order. | ||
| Check | |||
| 10 | Check Supplemental Restraint System (SRS) When replacing the windowbag (1). using vehicle diagnosis system. | ||
| AD00.00-P-2000-04B |
AIRBAG
| Number | Designation | Model 463 up to 11/30/00 up to model year 2019 | Model 463 as of 12/1/00 up to model year 2019 | |
|---|---|---|---|---|
| BA91.60-P-1005-01B | Bolt, window airbag unit to roof frame | Nm | 6 | 6 |
AIRBAG
| Number | Designation | Model 463 as of model year 2019 | |
|---|---|---|---|
| BA91.60-P-1005-01B | Bolt, window airbag unit to roof frame | Nm | 6 |
