Remove/Install Rear Seat Backrest Cover - AR91.18-P-1870GW
Model 463 (except 463.242)
as of model year 2013 up to model year 2019
Shown on rear seat at right
| Remove/install | |||
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| 1 | Remove rear seat backrest | Remove/install rear seat backrest Model 463 (except 463.242) as of model year 2013 up to model year 2019 |
AR91.12-P-1620GW |

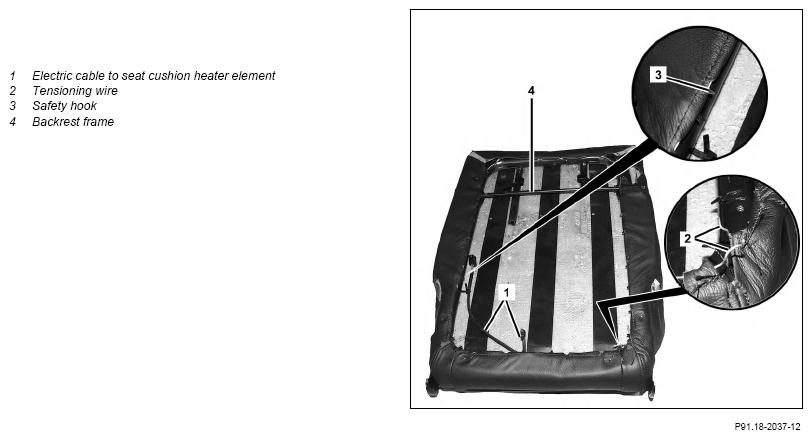

| 2 | Cut off cable tie of heater pad electric line (1) | ||
| 3 | Bend up tensioning wire (2) | ||
| 4 | Slightly bend up all safety hooks (3) on backrest frame (4) | ||
| 5 | Release tensioning wire (2) from backrest frame (4) | ||
| 6 | Expand tensioning wire (2) and remove backrest frame (4) from backrest padding | ||
| 7 | Pull off backrest cover over the backrest padding until the cramps (5) are visible | ||

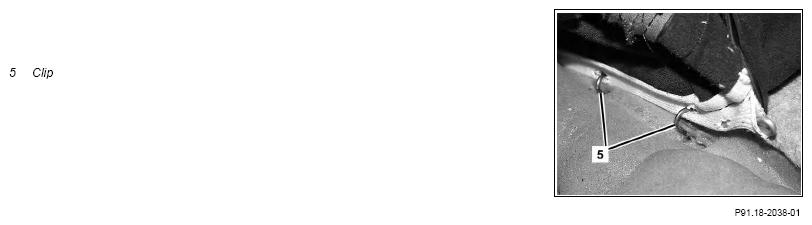

| 8 | Cut through all clips (5) using a suitable tool cut | Fig 1 | |
| 9 | Remove backrest cover from backrest padding | ||
| 10 | Install in the reverse order |
