Remove/Install Isofix Bracket At Rear Seat - AR91.40-P-1520GW

Model 463

as of model year 2013 up to model year 2019

/FACELIFT 2012

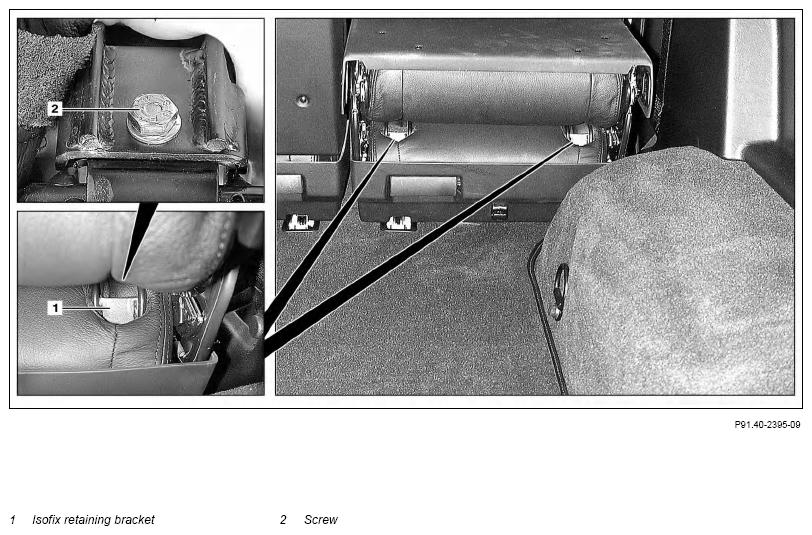

Fig 1: Isofix Bracket At Rear Seat Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019 /Facelift 2012

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear seats		AR91.12-P-1700GW
2	Remove rear seat backrest	Model 463 (except 463.242) as of model year 2013 up to model year 2019	AR91.12-P-1620GW
3	Remove rear seat cushion	Model 463 (except 463.242) as of model year 2013 up to model year 2019	AR91.12-P-1020GW
4	Remove cover from rear seat cushion	Model 463 (except 463.242) as of model year 2013 up to model year 2019	AR91.18-P-1850GW
5	Unscrew bolt (2) and remove Isofix retaining bracket (1)	ISOFIX retaining bracket at rear seat	*BA91.20-P-1002-01B
6	Install in the reverse order
