Overview Of System Components, Telematics - GF82.85-P-9999GWM
Model 463 (except 463.342)
as of model year 2019

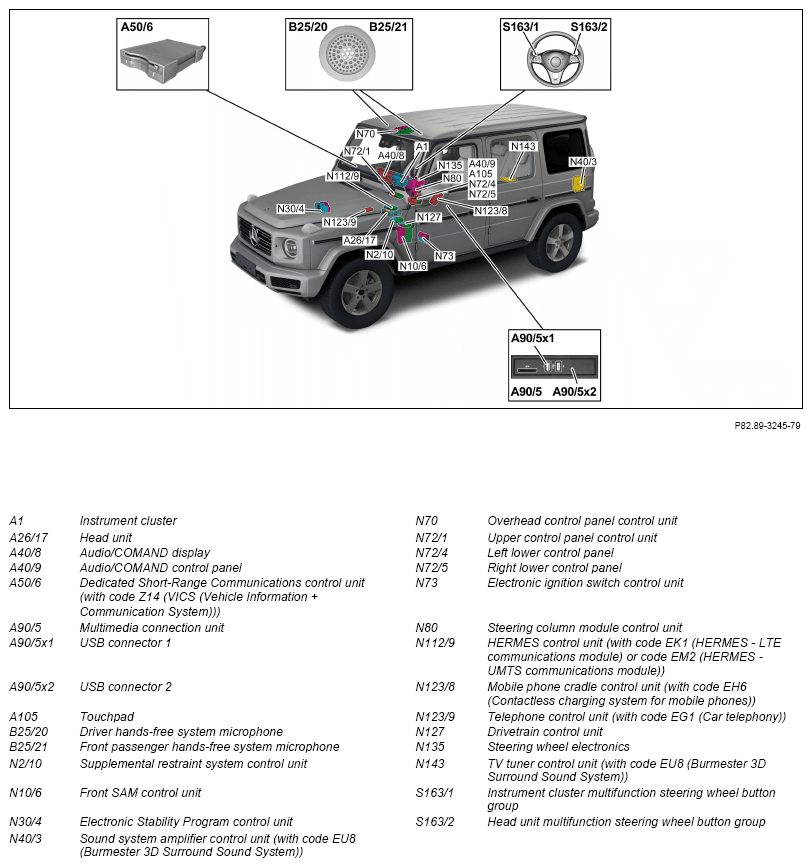

Component parts except telematics antenna system and except speaker system

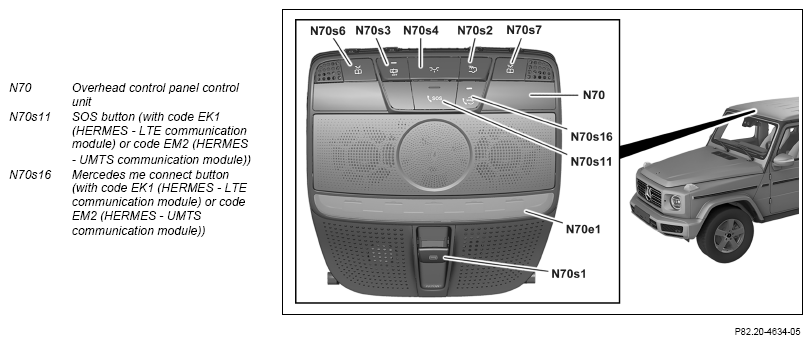

Detailed view of overhead control panel control unit (N70)

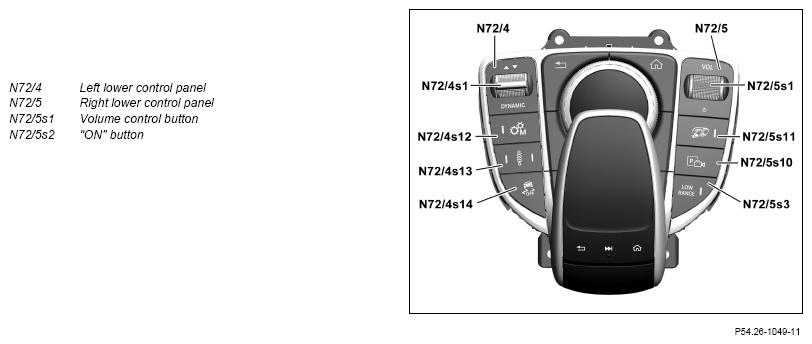

Detailed depiction of lower control panel at left (N72/4) and lower control panel at right (N72/5), shown on model 463.276/277

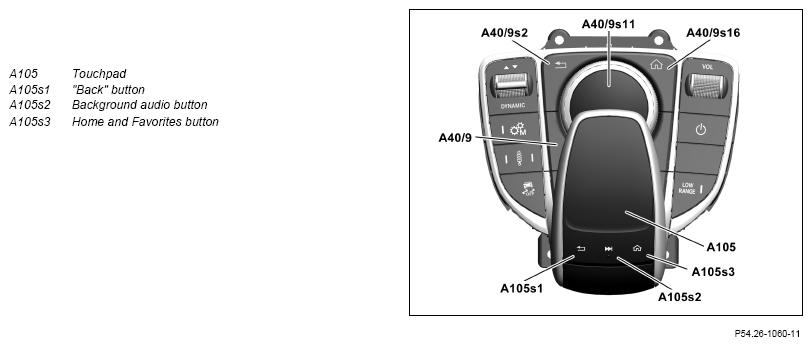

Detailed view of touchpad (A105)

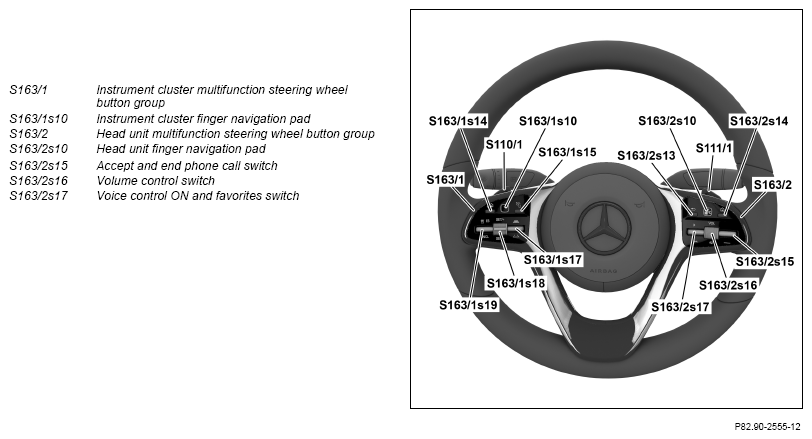

Detailed view of multifunction steering wheel, shown on left-hand drive vehicle

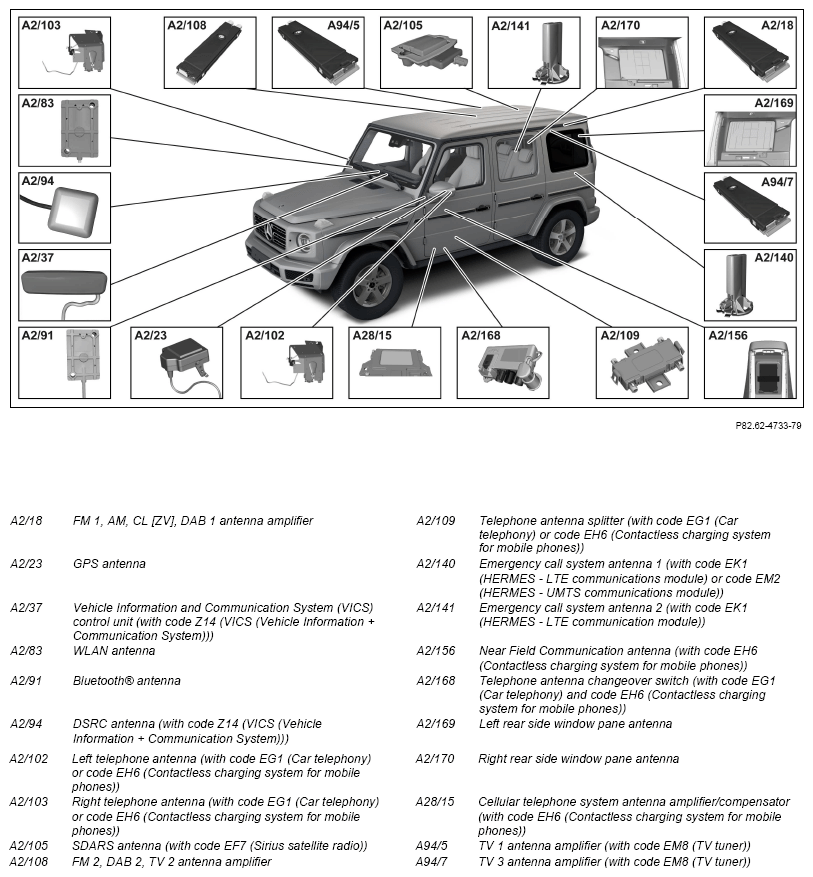

Telematics antenna system

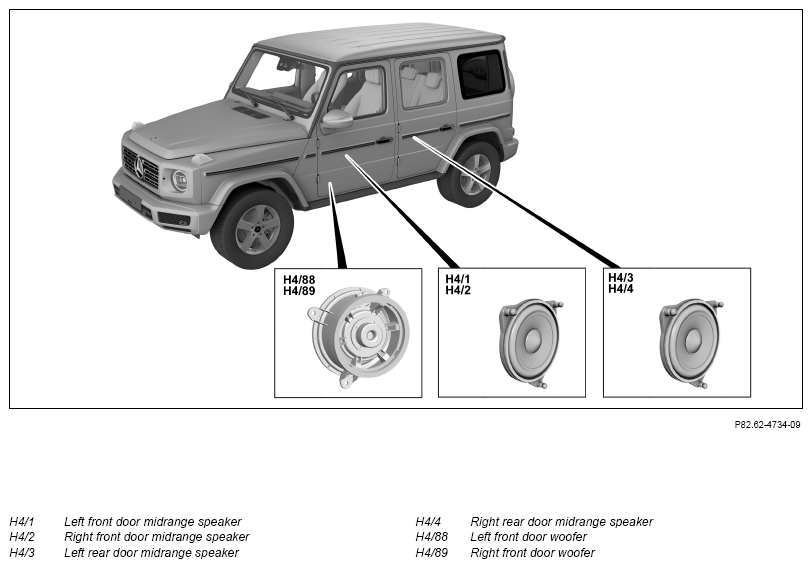

Speaker system, except code EU8 (Burmester 3D Surround Sound System)

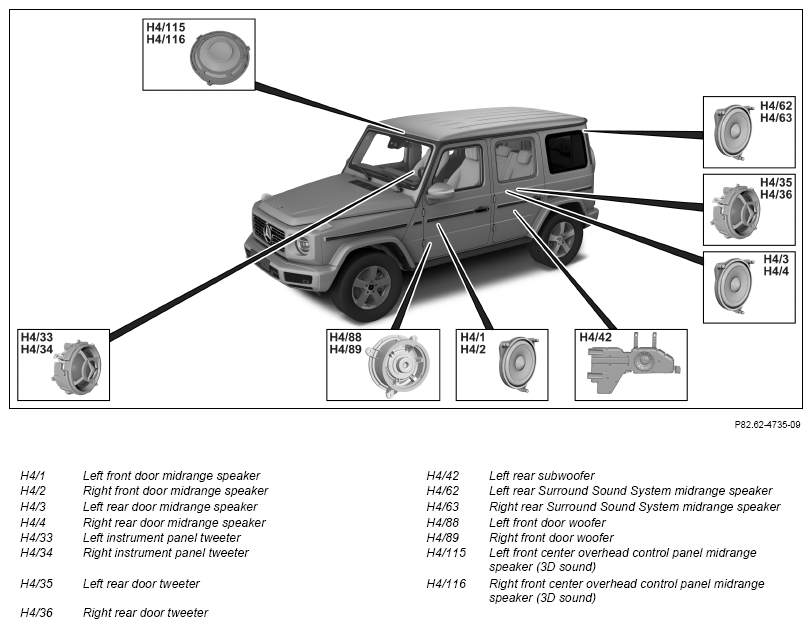

Speaker system, with code EU8 (Burmester 3D Surround Sound System)
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Head unit, component description | A26/17 | GF82.85-P-3140GW | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150GWM | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501GWM | |
| Touchpad, component description | A105 | GF54.21-P-4511GW | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GWM | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010GWM | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GWM | |
| Component description for sound system amplifier control unit | Model 463 (except 463.342) as of model year 2019 with code EU8 (Burmester® surround sound system) N40/3 |
GF82.62-P-5010GWM | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216GW | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GWM | |
| Lower control panel, component description | N72/4, N72/5 | GF54.25-P-4270GWM | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GWM | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GWM | |
| HERMES control unit, component description | Model 463 (except 463.342) as of model year 2019 with code EK1 (Communications module (LTE) for the use of Mercedes) Model 463 (except 463.342) as of model year 2019 with code EM2 (Communications module (UMTS) for the use of Merced) N112/9 |
GF82.85-P-0221GWM | |
| Mobile phone cradle control unit component description | Model 463 (except 463.342) as of model year 2019 with code EH6 (Multifunction telephony) N123/8 |
GF82.70-P-0201GW | |
| Telephone control unit, component description | Model 463 (except 463.342) as of model year 2019 with code EG1 (Auto telephony) N123/9 |
GF82.70-P-4153GW | |
| Digital TV tuner, component description | Model 463 (except 463.342) as of model year 2019 with code EM8 (TV tuner) N143 |
GF82.60-P-3118GWM | |
| Table of contents for function description, telematics | GF82.85-P-0993GWM |
