Remove/Install Taillamp - AR82.10-P-4905XG

Model 463

as of model year 2019

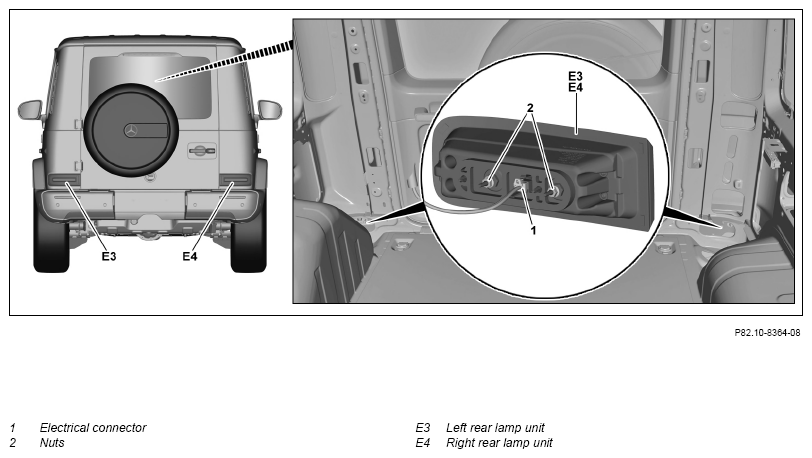

Fig 1: Taillamp Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove left load compartment trim or right load compartment trim.		AR68.30-P-1185XG
2	Disconnect electrical connector (1).
3	Unscrew nuts (2).
4	Remove left rear lamp unit (E3) or right rear lamp unit (E4).
5	Install in reverse order.
