Overview Of Exterior Lights System Components - GF82.10-P-9998GW
Model 463
as of model year 2013
Model 463 as of 03.04.2018, except model 463.342

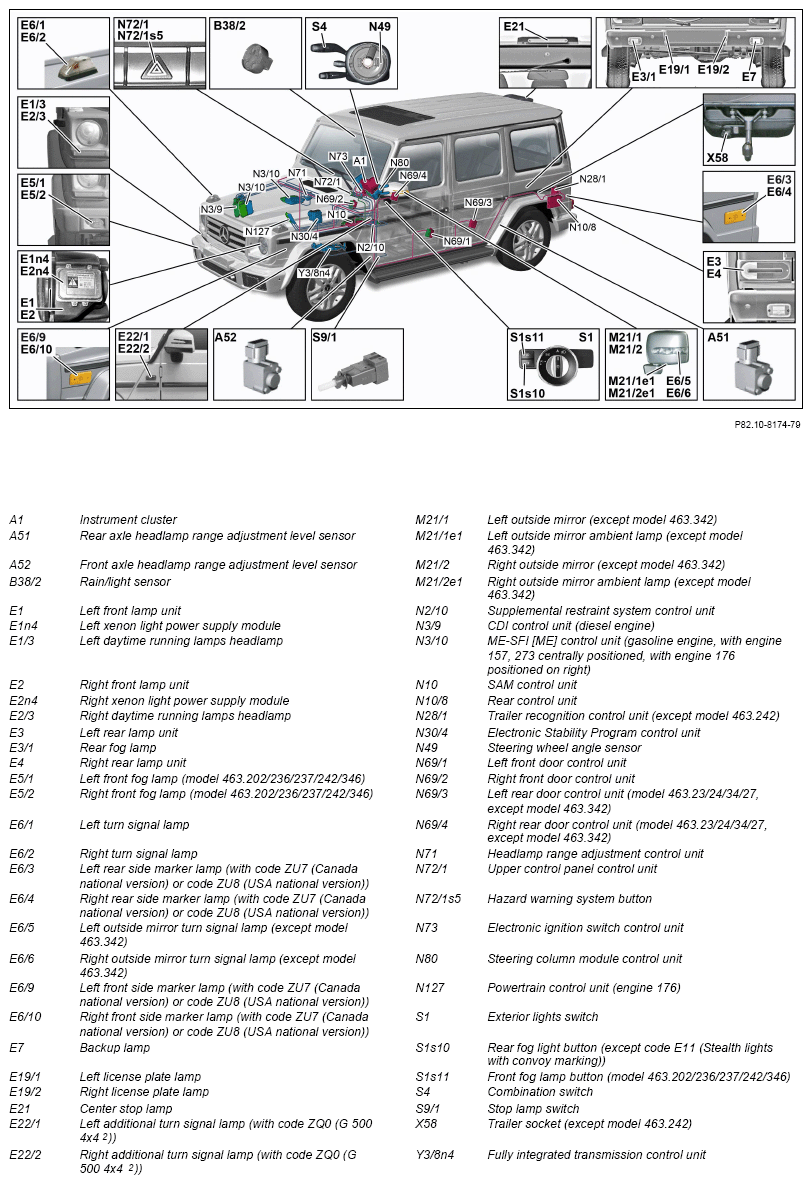

Model 463 up to 02.04.2018, model 463.342, shown on model 463.23

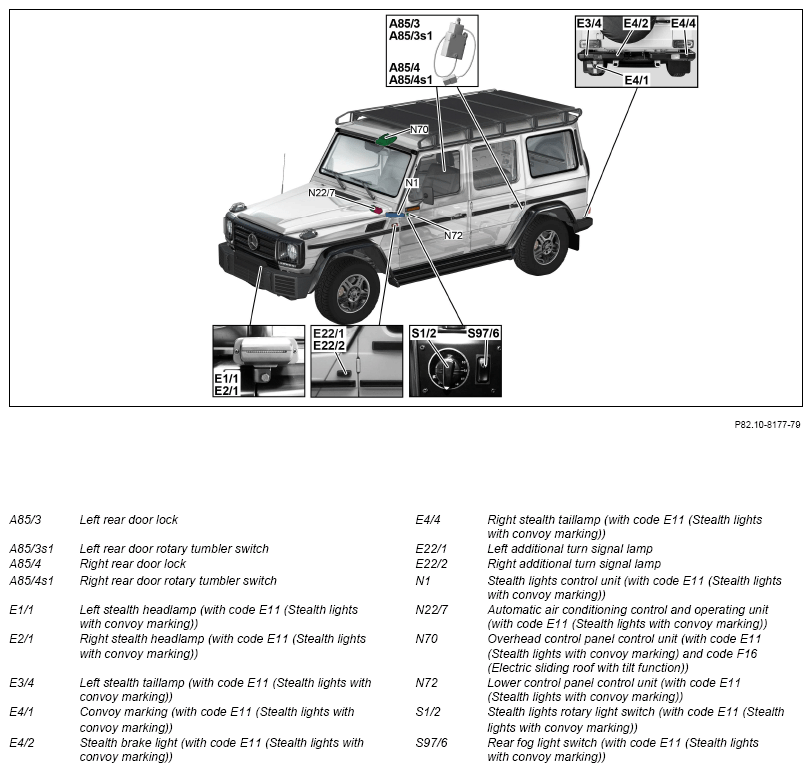

Shown on model 463.342

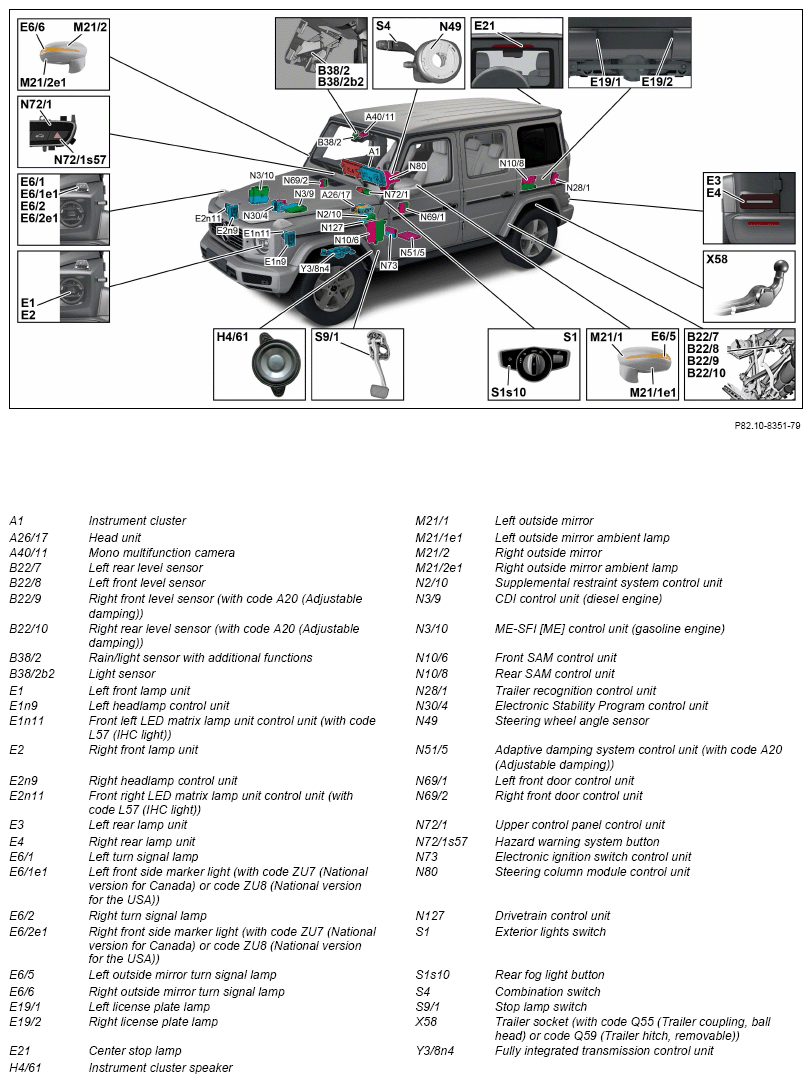

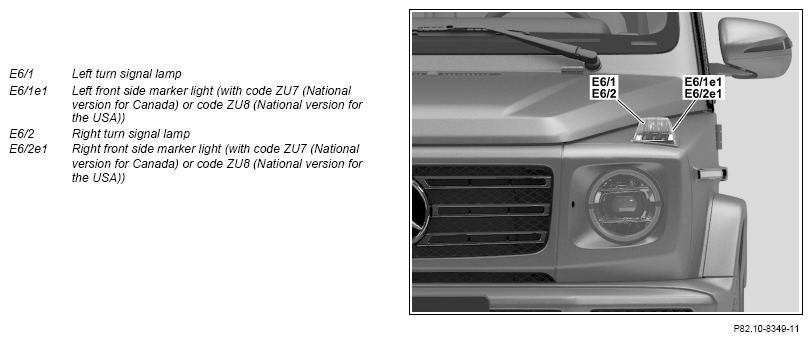

Shown on model 463 (except 463.342) as of 03.04.2018

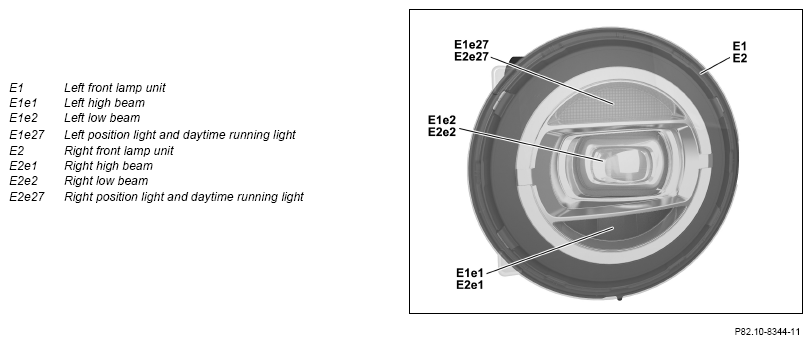

Static LED headlamps, model 463 (except 463.342) as of 03.04.2018, static LED headlamps (except code L57 (IHC light))
The following components are not shown:
- Left headlamp range adjustment actuator motor (E1m1)
- Fan motor 1 for left front lamp unit (E1m4)
- Left headlamp control unit (E1n9)
- Right headlamp range adjustment actuator motor (E2m1)
- Fan motor 1 for right front lamp unit (E2m4)
- Right headlamp control unit (E2n9)

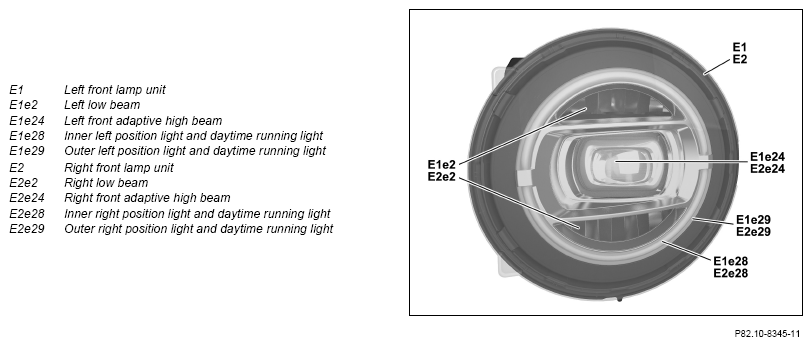

Dynamic LED headlamps, model 463 (except 463.342) as of 03.04.2018, dynamic LED headlamps (with code L57 (IHC light))
The following components are not shown:
- Left headlamp range adjustment actuator motor
- Left front lamp unit fan motor 1
- Fan motor 2 for left front lamp unit (E1m5)
- Left headlamp control unit
- Left front LED matrix lamp unit control unit (E1n11)
- Right headlamp range adjustment actuator motor
- Right front lamp unit fan motor 1
- Fan motor 2 for right front lamp unit (E2m5)
- Right headlamp control unit
- Right front LED matrix lamp unit control unit (E2n11)

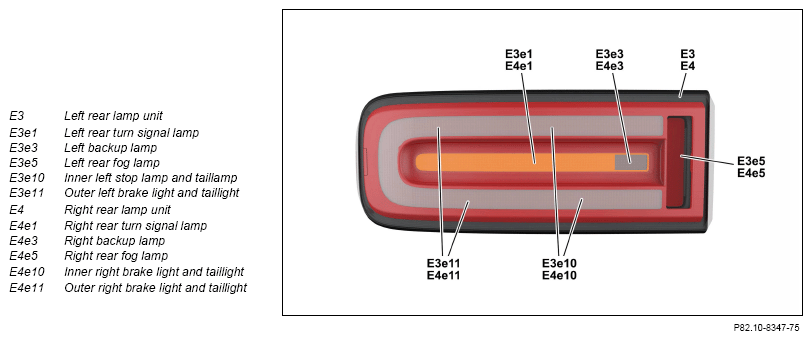

Rear lamp, model 463 (except model 463.342) as of 03.04.2018, except code ZU7 (National version for Canada) and except code ZU8 (National version for USA)

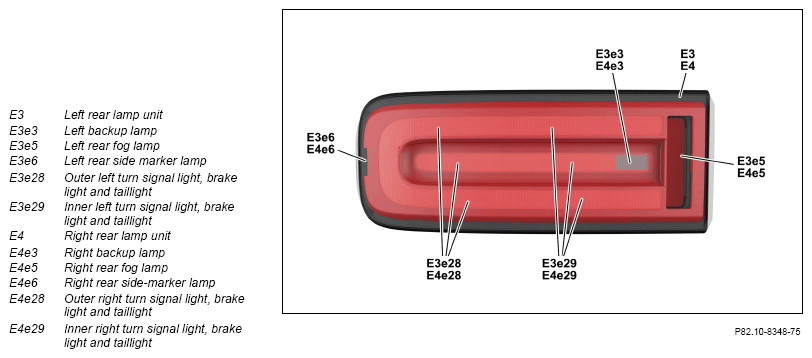

Rear lamp, model 463 (except model 463.342) as of 03.04.2018, with code ZU7 (National version of Canada) or code ZU8 (National version for USA)

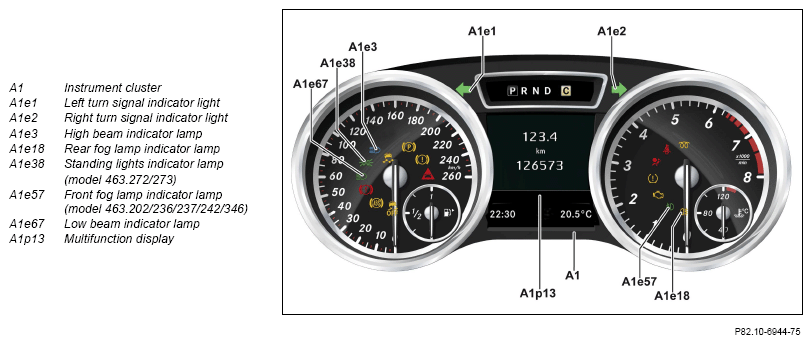

Display in instrument cluster (model 463 up to 02.04.2018, model 463.342)
The following components in the instrument cluster transmitting functional feedback are not shown here:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)

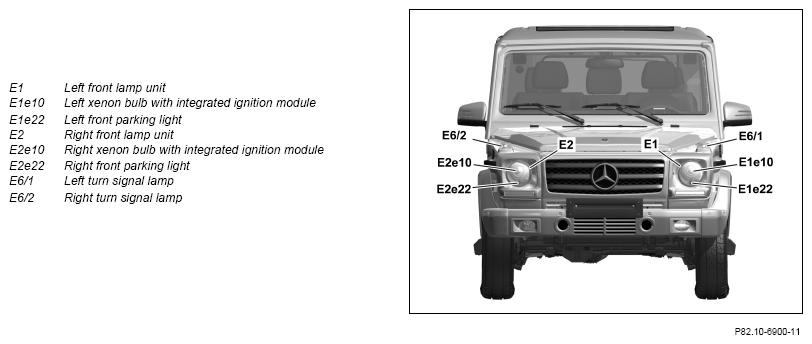

Front lamp unit, model 463 up to 02.04.2018, model 463.342, shown on model 463.23
The following components integrated into the front lamp unit are not shown:
- Left high beam solenoid (E1l1)
- Left headlamp range adjustment actuator motor
- Right high beam solenoid (E2l1)
- Right headlamp range adjustment actuator motor

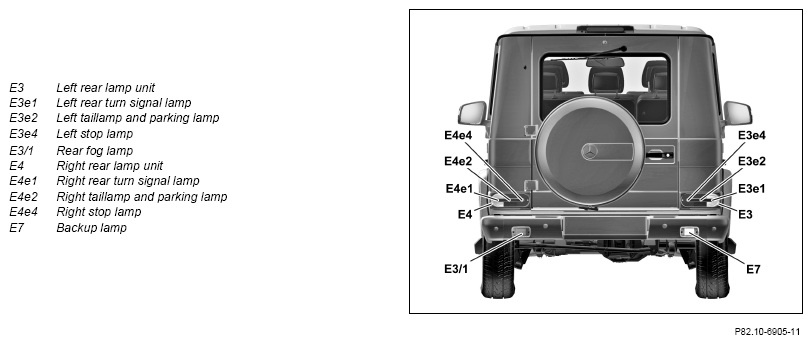

Rear lamp unit, model 463 up to 02.04.2018, model 463.342, shown on model 463.23
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Head unit, component description | Model 463 (except 463.342) as of model year 2019 A26/17 |
GF82.85-P-3140GW | |
| Component description for multifunction camera | Model 463 (except 463.342) as of model year 2019 A40/11 |
GF54.21-P-3300GWM | |
| Stealth lights control unit, component description | Model 463 as of model year 2013 with code E11 (Blackout lighting with convoy light) N1 |
GF82.10-P-2021GW | |
| Supplemental restraint system control unit, component description | Model 463 (except 463.342) as of model year 2019 N2/10 |
GF91.60-P-4080GWM | |
| Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2013 N2/10 |
GF91.60-P-4080GW | ||
| Component description for CDI control unit | Model 463 with engine 656.9 as of model year 2013 N3/9 |
GF07.16-P-6000OIB | |
| Model 463 with engine 642.8 as of model year 2013 N3/9 |
GF07.16-P-6000OGT | ||
| Component description for ME-SFI (ME) control unit | Model 463 with engine 157.9 as of model year 2013 N3/10 |
GF07.61-P-6000MMJ | |
| Model 463 with engine 176.9 as of model year 2016 up to model year 2019 N3/10 |
GF07.61-P-6000MNF | ||
| Model 463 with engine 176.9, 177.9 as of model year 2019 N3/10 |
GF07.61-P-6000MNH | ||
| Model 463 with engine 273.9 as of model year 2013 N3/10 |
GF07.61-P-6000MLJ | ||
| SAM control unit, component description | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2013 N10 |
GF54.21-P-4157GW | |
| Component description for front SAM control unit | Model 463 (except 463.342) as of model year 2019 N10/6 |
GF54.21-P-7010GWM | |
| Rear control unit, component description | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2013 N10/8 |
GF54.21-P-4134GW | |
| Component description for rear SAM control unit | Model 463 (except 463.342) as of model year 2019 N10/8 |
GF54.21-P-7030GWM | |
| Component description for climate control and operating unit | Model 463 as of model year 2013 up to model year 2019 N22/7 |
GF83.40-P-3002GW | |
| Component description for trailer recognition control unit | Model 463 (except 463.342) as of model year 2019 N28/1 |
GF31.19-P-4050GWM | |
| Model 463 (except 463.242/342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2013 N28/1 |
GF31.19-P-4050GW | ||
| Component description for Electronic Stability Program control unit | Model 463 (except 463.342) as of model year 2019 N30/4 |
GF42.45-P-5119GWM | |
| Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2013 N30/4 |
GF42.45-P-5119GW | ||
| Component description for adaptive damping system control unit | Model 463 as of model year 2019 with code A20 (Suspension with adaptive damping adjustment) N51/5 |
GF32.32-P-1010GWM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GW | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GW | |
| Component description for rear door control unit | Model 463.23/24/27, 463.34 (except 463.342) as of model year 2013 N69/3, N69/4 |
GF72.29-P-6021GW | |
| Component description for overhead control panel control unit | Model 463 (except 463.342) as of model year 2013 Model 463.342 as of model year 2017 except code ZD4 (Vehicle for non-civilian operations) Model 463.342 as of model year 2017 with code F16 (Tilting/sliding sunroof, electric) with code ZD4 (Vehicle for non-civilian operations) N70 |
GF82.20-P-5216GW | |
| Component description of headlamp range adjustment control unit | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2013 N71 |
GF82.10-P-2112GW | |
| Lower control panel control unit, component description | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2013 N72 |
GF54.21-P-6060GW | |
| Upper control panel control unit, component description | Model 463 (except 463.342) as of model year 2019 N72/1 |
GF54.21-P-6040GWM | |
| Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2013 N72/1 |
GF54.21-P-6040GW | ||
| Component description for the electronic ignition lock control unit | Model 463 (except 463.342) as of model year 2019 N73 |
GF80.57-P-6001GWM | |
| Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2013 N73 |
GF80.57-P-6001GW | ||
| Component description for steering column tube module control unit | Model 463 (except 463.342) as of model year 2019 N80 |
GF54.21-P-6051GWM | |
| Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2013 N80 |
GF54.21-P-6051GW | ||
| Drivetrain control unit, component description | Model 463 with engine 656.9 as of model year 2013 N127 |
GF54.21-P-2141OIB | |
| Model 463 with engine 176.9, 177.9 as of model year 2019 N127 |
GF54.21-P-2141MNH | ||
| Model 463 with engine 176.9 as of model year 2016 up to model year 2019 N127 |
GF54.21-P-2141MNF | ||
| Component description for fully integrated transmission control unit | Model 463 with transmission 722.9 as of model year 2013 Y38n4 |
GF27.60-P-5165AHG | |
| Model 463 with transmission 725.0 as of model year 2013 Y38n4 |
GF27.60-P-5165ANE | ||
| Table of contents for function description of exterior lights | GF82.10-P-0999GW |
