Mobile Phone System, Function - GF82.70-P-0007GWM

Model 463 (except 463.342)

as of model year 2019

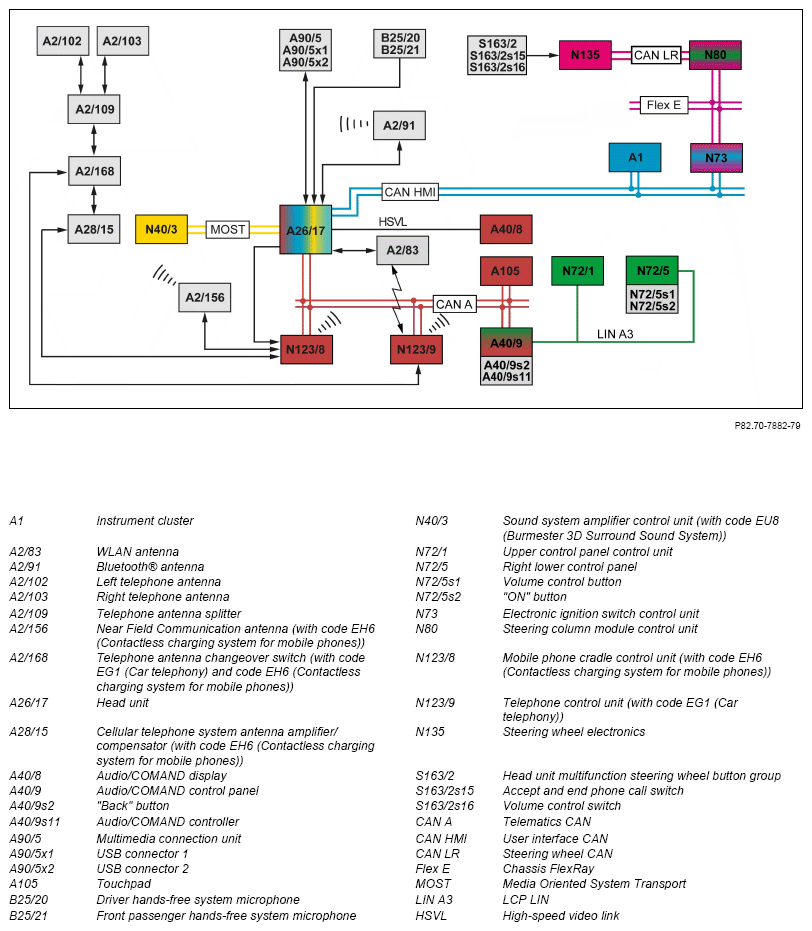

G13669669Courtesy of MERCEDES-BENZ USA

Function requirements, general

IMPORTANT If a smartphone is integrated in the vehicle using Android Auto, telephone calls can only be made using this smartphone.

IMPORTANT Further information is available at:

http://www.mercedes-benz-mobile.com

Mobile telephone system, general

Equipment and use variants of mobile phone system:

All the variants use Bluetooth® technology for data transfer.

IMPORTANT An authorized mobile phone can also be used as a modem for accessing the Internet or as a playback device as part of Bluetooth® audio.

The head unit sends and receives telephone signals over the Bluetooth® antenna. The head unit also generates the display messages and sends the corresponding data to the Audio/COMAND display over the HSVL line. If the head unit is not switched on, it can be activated using the "ON" button in the lower control panel at the right. The lower control panel at the right sends the status of the volume control button to the head unit over thew UBF-LIN, Audio/COMAND control panel and the telematics CAN.

IMPORTANT The mobile phone system is described using the example of basic telephony. The special equipment features are summarized at the end of this document.

The mobile phone system includes the following areas:

Bluetooth®

Using Bluetooth®, it is possible to quickly and easily connect mobile terminals that support the corresponding profiles to the mobile phone system. Bluetooth® is a worldwide open standard for connecting Bluetooth® devices (e.g. mobile phone) wirelessly and is based on radio technology in the 2.4 GHz range. One advantage of Bluetooth®, in addition to the wide availability of Bluetooth® devices, is the uncomplicated and spontaneous connection of Bluetooth® devices. The relatively high data security (128-bit encoding) and the relatively limited radius (approx. 10 m) of a Bluetooth® network also make the use of Bluetooth® in the vehicle interesting. The head unit can integrate mobile phones into the vehicle hierarchy over the mobile phone's Bluetooth® interface and the Bluetooth® antenna. The head unit automatically searches for the last two connected mobile phones and connects to the mobile phone that responds first.

IMPORTANT If the mobile phone is not connected with the head unit automatically or if the head unit is to establish a connection with a different mobile phone, the connection must be established manually via the basic telephone function. Authorized mobile phones can be selected from a list. Non-authorized mobile phones must be authorized first. Up to 15 mobile phones can be authorized at the same time. If a new mobile phone is to be authorized when there are already 15 authorized mobile phones, the user is prompted to delete one of the existing data records. Detailed information on authorization can be found in the respective operator's manual.

Switch on/off characteristics

The mobile phone is switched ON/OFF via the mobile phone itself. The Personal Identification Number (PIN) must then, where set, be entered in the mobile phone. If the subscriber identification module (SIM) has been authorized, the mobile phone registers with the mobile phone network of the respective provider. The mobile phone network provider and signal level are displayed in the status bar of the Audio/COMAND display. The Bluetooth® setting must be enabled in the mobile phone.

If the mobile phone was manually or automatically switched OFF or if the Bluetooth® setting is switched OFF, the message "Ready for Bluetooth® Telephony" is displayed in the Audio/COMAND display. The head unit then searches again for the last authorized mobile phones.

The head unit can be switched on or off using the "ON" button on the lower control panel at the right.

Call signal

The head unit receives the call signal of the mobile phone via the Bluetooth® antenna. The head unit then switches the active audio source to "Mute" and shows the caller ID in the Audio/COMAND display. To do this, the head unit transmits the corresponding data to the Audio/COMAND display via the HSVL line. The ringing tone is output via the speaker system. The head unit directly actuates the speaker system or sends corresponding signals over the MOST to the sound system amplifier control unit (with code EU8 (Burmester 3DSound system)). If the mobile phone supports in-band ringing, the ring tone of the mobile phone is output, a standard ring tone is otherwise output.

Establish, end, accept, reject or toggle call

Telephone numbers can be entered using a character bar on the Audio/COMAND display or they can be searched for and selected in call lists or in the address book.

The mobile phone system can be operated using the following components:

IMPORTANT Call waiting: Call waiting is a performance feature in which the subscriber can switch between two active connections.

IMPORTANT Conference connection: Conference connection is a performance feature in which - depending on the type of connection - several subscribers can be interconnected.

Using the phone in hands-free mode

The voice input in the hands-free mode is recorded by the hands-free system microphone and forwarded to the head unit. The head unit and the mobile phone communicate with each other via the Bluetooth® antenna. Incoming voice signals are output via the speaker system.

The head unit directly actuates the speaker system or sends corresponding signals over the MOST to the sound system amplifier control unit (with code EU8 (Burmester 3DSound system)).

The volume of the voice outputs can, e.g. be adjusted using the volume control button on the lower control panel at the right or the volume control switch on the head unit multifunction steering wheel button group.

Address book

The user can manage all the contact data in the address book (view, edit, add, delete and create). The address book contains the address entries stored in the head unit. Address entries can only be removed by deleting individual entries or by deleting the entire address book. Address-relevant mobile phone system applications can be directly started and supplied with the stored data via address book entries.

Address data of external devices (e.g. Personal Digital Assistant (PDA), Notebook) or storage media (e.g. Secure Digital (SD) card, Universal Serial Bus (USB) memory) can be saved in the address book and are then permanently available as an address entry.

Address data can be transferred to the address book via the following system components:

Address book entries can include the following information:

IMPORTANT Model 463 (except 463.342)

as of model year 2019

with code ZJ1 (Version for Japan)

The call can be established via the VCS [SBS] for each entry with a completed "Yomigana field".

SMS/email (except code ZJ1 (Version for Japan))

The SMS and email application enables the user to receive, send or manage SMS messages and emails. To do so, the SMS messages and emails previously received on the mobile phone as well as any new incoming SMS messages and emails are forwarded to the head unit. The following SMS and email functions are available:

IMPORTANT The basic telephony SMS and email function requires support of the Message Access Profile (MAP). Under certain circumstances, loading SMS messages may take a long time. This may be because of the mobile phone or the number of SMS messages or emails in the mobile phone.

Once the head unit is connected with the mobile phone, it receives the SMS messages already saved in the mobile phone and any new incoming SMS messages and emails over the Bluetooth® antenna. The functions for writing, sending and managing SMS messages or emails are called up through the basic telephone function. The head unit shows them on the Audio/COMAND display over the HSVL line. When reading SMS messages and emails, the head unit directly actuates the speaker system or sends corresponding signals over the MOST to the sound system amplifier control unit (with code EU8 (Burmester 3DSound system)).

Telephony (with code EG1 (Car telephony) or code EH6 (Contactless charging system for mobile phones))

The mobile phone system is automatically switched on by a wake-up pulse when the head unit is switched on. The cellular telephone signals are transmitted and received over the telephone antennas.

Vehicles with code EG1 (Car telephony)

The connection is made using the telephone antenna splitter, telephone antenna changeover switch and the telephone control unit.

Vehicles with code EH6 (Contactless charging system for mobile phones)

The connection is made using the telephone antenna splitter, telephone antenna changeover switch, the cellular telephone system antenna amplifier/compensator, and the mobile phone cradle control unit. For communication using the antenna connection, the mobile pone must be placed into the mobile phone cradle control unit.

If the equipment with code EG1 (Car telephony) and code EH6 (Contactless charging system for mobile phones) is combined, the following connection priorities apply:

IMPORTANT The mobile phone system supports the Long Term Evolution (LTE) mobile radio standard.

Vehicles with code EG1 (Car telephony)

The head unit sends the telephone signals over the Bluetooth® antenna and the Internet signals over the wi-fi antenna to the telephone control unit. The telephone control unit sends the encrypted data over the telephone antenna changeover switch, telephone antenna splitter and the telephone antennas to the mobile phone network.

Vehicles with code EH6 (Contactless charging system for mobile phones)

The mobile phone cradle control unit fulfills the following functions:

IMPORTANT Communication with the head unit is realized through the mobile phone's Bluetooth® interface.

IMPORTANT To ensure smooth communication of the mobile phone with the mobile phone cradle control unit, the cellular telephone system signals are sent through capacitive coupling.

PIN prompt

Once the mobile phone has been switched on, a PIN prompt is output where this is set in the mobile phone. This process is displayed in the Audio/COMAND display. The PIN can be entered using the head unit controls.

Near Field Communication (NFC) (with code EH6 (Contactless charging system for mobile phones))

NFC is an international transmission standard for the wireless exchange of data via radio over very short distances (a few centimeters). Authorized mobile phones that are placed on the mobile phone cradle control unit and which support the NFC standard can be connected to the mobile phone system quickly and easily using NFC. The mobile phone and the head unit then communicate via the Near Field Communication antenna, the mobile phone cradle control unit and the telematics CAN.

Connection priority (with code EH6 (Contactless charging system for mobile phones))

The head unit can integrate authorized mobile phones into the vehicle hierarchy via NFC or through Bluetooth®, provided it is activated for the mobile phone. NFC uses the NFC interfaces of the mobile phone and the mobile phone cradle control unit as well as the Near Field Communication antenna on the mobile phone cradle control unit. Bluetooth® communication uses the Bluetooth® interface of the mobile phone and the Bluetooth® antenna.

The head unit differentiates between the following connection priorities:

  1. The mobile phone is located on the mobile phone cradle control unit and logged in through the NFC.
  2. The mobile phone is in the Bluetooth® signal range.

The head unit automatically searches over the Bluetooth® connection for the last two connected mobile phones, and then connects to the mobile phone that responds first.

IMPORTANT If the mobile phone is not connected with the head unit automatically or if the head unit is to establish a connection with a different mobile phone, the connection must be established manually via the basic telephone function. Authorized mobile phones can be selected from a list. Non-authorized mobile phones must be authorized first. Up to 15 mobile phones can be authorized at the same time. If a new mobile phone is to be authorized when there are already 15 authorized mobile phones, the user is prompted to delete one of the existing data records. Detailed information on authorization can be found in the respective operator's manual.

Charging process (with code EH6 (Contactless charging system for mobile phones))

The following options are available for charging the mobile phone:

  Electrical function schematic for mobile phone   PE82.70-P-2051-97ZGE
  Overview of system components, telematics   GF82.85-P-9999GWM
