(Remove/Install Front Bumper - AR88.20-P-2000GWC)

Model 463

as of model year 2013 up to model year 2016

except code 990 (AMG car docs./desig. plate allocation)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove oil cooler	Secure oil cooler against falling down. Oil cooling lines remain on the oil cooler.	AR27.55-P-1000GY
2	Remove DISTRONIC (DTR) sensor	Model 463 as of model year 2013 up to model year 2016 with code EZ9 (DISTRONIC PLUS) except code 990 (AMG car docs./desig. plate allocation)/facelift 2012	AR30.30-P-1010GW

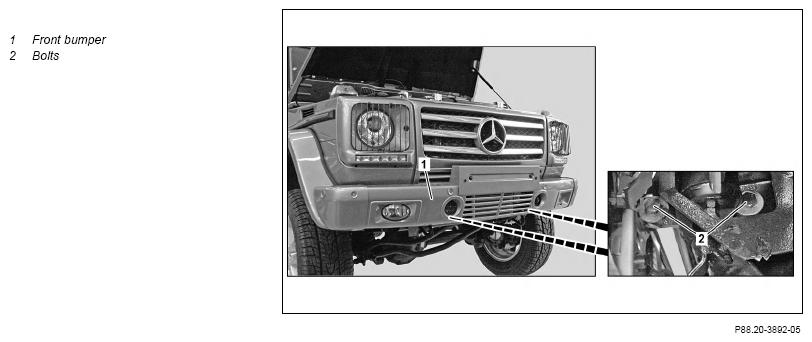

3	Remove screw/bolts (2)	Secure front bumpers (1) against falling down. Helper required. Total of 4 screws (2) present.
4	Pull front bumper (1) forward somewhat and disconnect electrical connectors	Number of electrical connectors can vary according to vehicle equipment.
5	Remove bumper (1)
6	Install in the reverse order
