Electric mirror, function - GF88.79-P-0006GW
Model 463 (except 463.342)
as of model year 2013

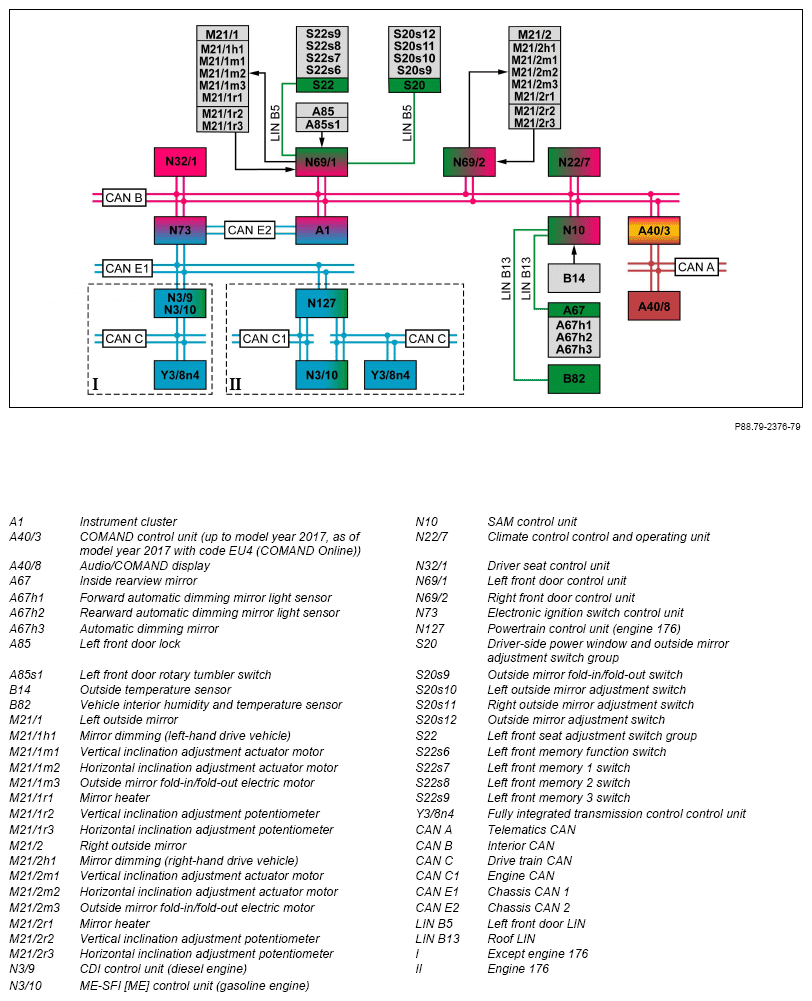

Shown on model 463 (except 463.342) as of 03.04.2018

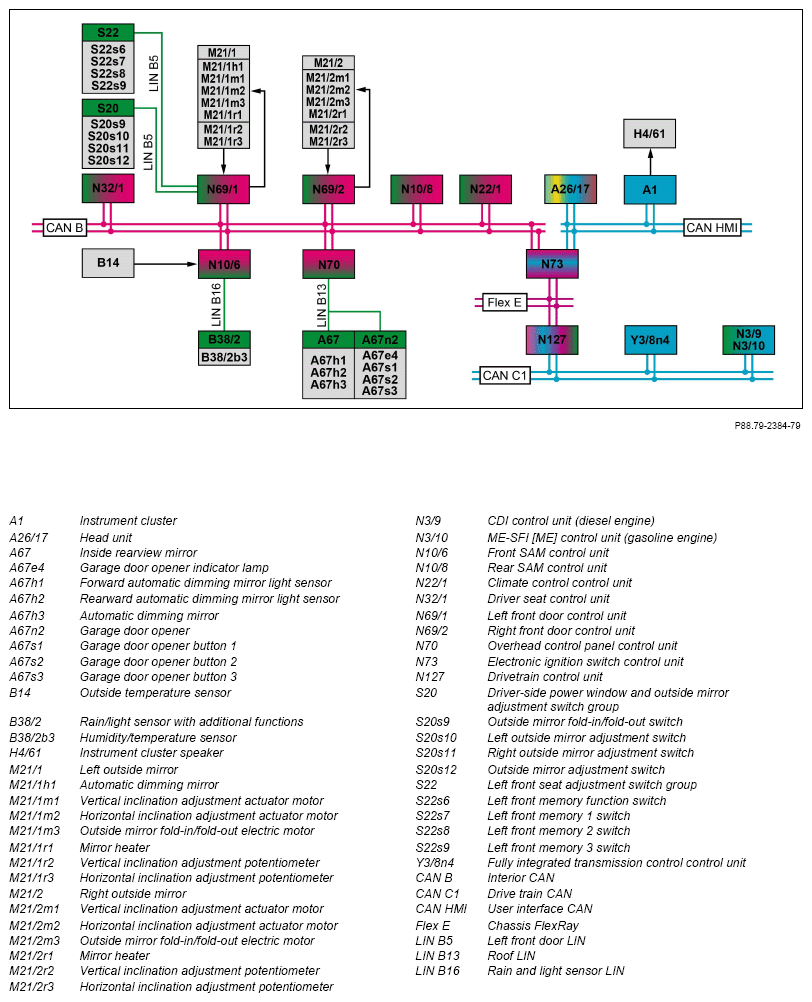

Shown on model 463 (except 463.342) up to 02.04.2018
Electric mirror, general
In order to adapt to the different driving situations, the outside mirrors are electrically adjustable. The mirror glasses can be heated additionally.
The electric mirror function contains the following partial functions, which are described in separate documents:
- Mirror lens adjustment left/right outside mirror, function
- Passenger-side outside mirror park position, function
- Fold left/right outside mirror, function
- Automatic dimming outside mirror and inside rearview mirror, function
- Garage door opener, function (with code YF9 (Garage door opener))
- Heat left/right outside rearview mirrors function
| Mirror lens adjustment left/right outside mirror, function | GF88.79-P-2008GW | ||
| Heat left/right outside rearview mirrors function | GF88.79-P-2000GW | ||
| Passenger-side outside mirror park position, function | GF88.79-P-2006GW | ||
| Fold left/right outside mirror, function | GF88.79-P-2002GW | ||
| Automatic dimming outside mirror and inside rearview mirror, function | GF88.79-P-2010GW | ||
| Garage door opener, function | Model 463 (except 463.342) as of model year 2013 with code YF9 (Garage door opener) |
GF68.05-P-0001GW |
