Remove/Install Fanfare Horns - AR54.35-P-1555XG

Model 463

as of Model year 2019

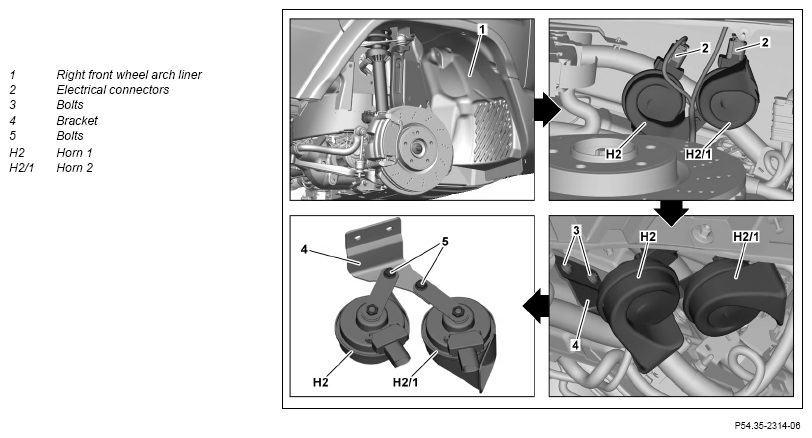

Fig 1: Fanfare Horns Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Remove right front wheel arch liner (1) at fender.		AR88.80-P-0005XG
2	Disconnect electrical connectors (2).
3	Remove screws (3).
4	Remove holder (4) with horn 1 (H2) and horn 2 (H2/1).	Note installation position of horn 1 (H2) and horn 2 (H2/1) and, if necessary, correct with screws (5).
5	Install in reverse order.
