Remove/Install Wheel Arch Liner On Front Fender - AR88.80-P-0005XG

Model 463

as of model year 2019

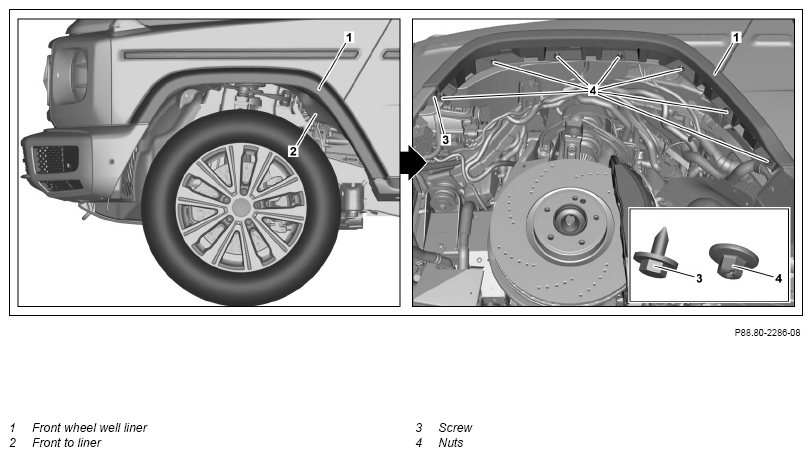

Fig 1: Front Fender Wheel Arch Liner Components Location - Model 463 As Of Model Year 2019 (Shown On Left Side Of Vehicle)

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

	Remove/install
1	Remove the front fender liner (2).		AR88.10-P-1300XG
2	Remove the screw (3).
3	Unscrew nuts (4).
4	Remove the front wheel arch liner (1).	The contact surfaces of the front wheel arch liner (1) on the vehicle must be dirt-free.
5	Install in the reverse order.
