Adjust Front Axle Toe - AR40.20-P-0264LWO

Model 238

Shown except CODE M005 (4MATIC)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown except CODE M005 (4MATIC)

Courtesy of MERCEDES-BENZ USA

	Measure
1	Perform initial measurement		AR40.20-P-0200LWO
	Check
2	Remove center and front engine compartment paneling		AR61.20-P-1105LWE

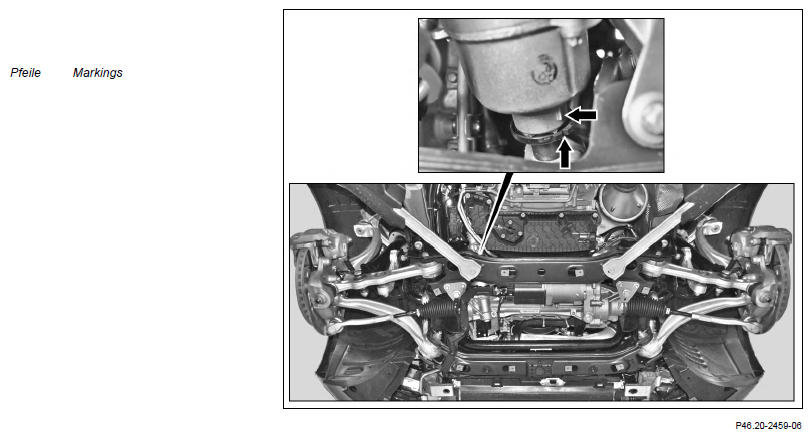

3	Check center position of steering gear and center position of steering wheel	The steering gear is in the center position when the markings (arrows) on the cap and on the electric steering are aligned. If the center position of the steering wheel does not match the center position of the steering gear. ↓ Move steering wheel by one tooth only.	AR46.10-P-0100LW
	Adjust

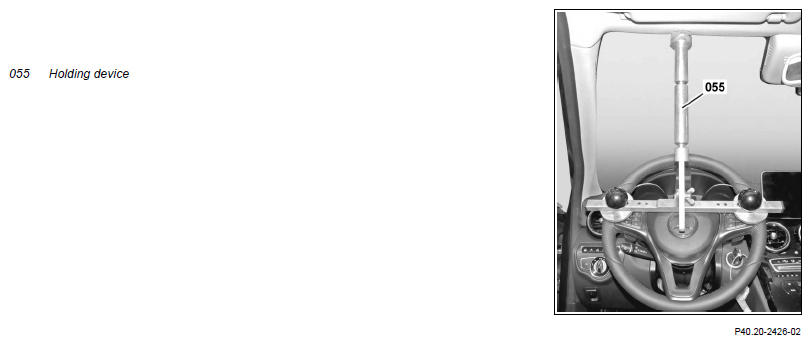

4	Insert holding device (055) in front of sun visor and fix steering wheel in place	Protect the emblem in the steering wheel against damage. Otherwise the holding device (055) may make an indent on the emblem. Retainer device	Fig 1

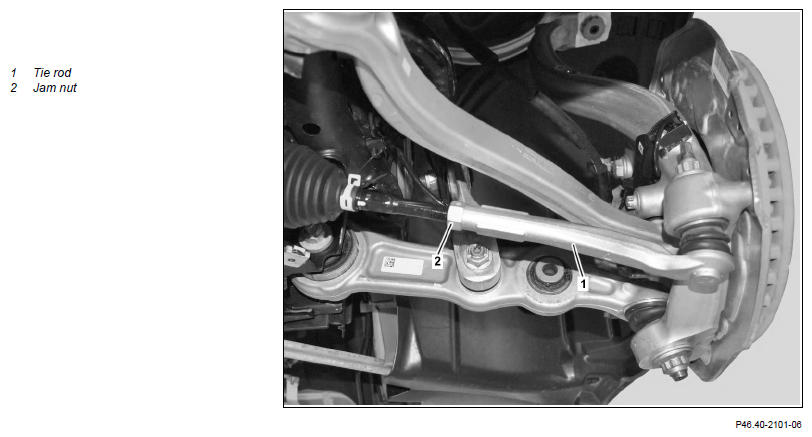

5	Unfasten jam nut (2) of tie rod (1)	It is essential to counterhold the tie rod (1). The tie rod (1) will otherwise be damaged.
6	Adjust toe by turning tie rod (1)	Assign suspension data Make sure that the boots are not twisted.	AR40.20-P-0203LOA
7	Tighten jam nut (2)	Counterhold the tie rod (1). The tie rod (1) will otherwise be damaged. Jam nut, tie rod to inner tie rod	*BA46.40-P-1002-01P
8	Install center and front engine compartment paneling		AR61.20-P-1105LWE
9	Remove holding device (055)
	Measure
10	Perform final measurement		AR40.20-P-0200LWO

Fig 1: Identifying Retainer Device (129 589 01 21 00)

Courtesy of MERCEDES-BENZ USA
