Remove/Install Front Stabilizer Bar Link Rod - AR32.35-P-3328LW

Model 205

Except Code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 213

Except Code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 238

Except Code M005 (Vehicles with 4MATIC/all-wheel drive)

Shown on right side of vehicle

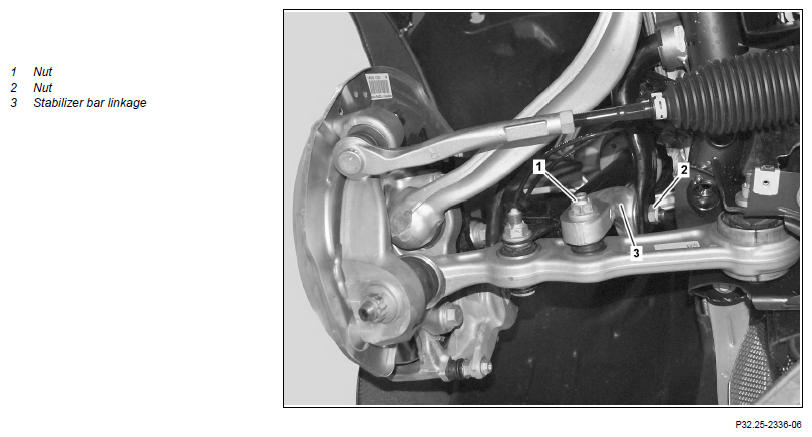

Fig 1: Front Stabilizer Bar Link Rod Components Location - Model 238 Except Code M005 (Shown On Right Side)

Courtesy of MERCEDES-BENZ USA

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on AIRmatic	Model 205 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code M005 (Vehicles with 4MATIC/all-wheel drive) Model 213 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code M005 (Vehicles with 4MATIC/all-wheel drive)	AH32.22-P-1000-02LW
	Notes on AIR BODY CONTROL	Model 238 with code 489 (AIR BODY CONTROL) except code M005 (Vehicles with 4MATIC/all-wheel drive)	AH32.22-P-1000-03LWO
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Vent pressure in AIRmatic, or AIR BODY CONTROL system with vehicle diagnosis system
		Model 205 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code M005 (Vehicles with 4MATIC/all-wheel drive) Model 213 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code M005 (Vehicles with 4MATIC/all-wheel drive)	AD00.00-P-2000-04B
		Model 238 with code 489 (AIR BODY CONTROL) except code M005 (Vehicles with 4MATIC/all-wheel drive)	AD00.00-P-2000-06LWO
2	Remove front wheel		AR40.10-P-1102A
3	Remove suspension strut from spring control arm	Model 205 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code M005 (Vehicles with 4MATIC/all-wheel drive) Model 213 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR32.25-P-1017LWL
		Model 238 with code 489 (AIR BODY CONTROL) except code M005 (Vehicles with 4MATIC/all-wheel drive) Carefully push suspension strut outwards. Otherwise the boot on the suspension strut joint may be damaged.	AR32.25-P-1017LWQ
4	Unscrew nut (1)	Nut, torsion bar linkage to spring control arm	*BA32.20-P-1003-02R
5	Unscrew nut(2)	Counterhold torsion bar linkage (3) on elastomer bearing. Otherwise the elastomer bearing may be damaged. Torsion bar linkage to torsion bar	*BA32.20-P-1002-02R
		Wrench SW 12	Fig 2
6	Turn steering and remove torsion bar linkage (3)	When removing left torsion bar linkage (3) turn steering to left. When removing right torsion bar linkage (3), turn steering to right.
	Check
7	Check elastomer bearing of torsion bar linkage (3) for condition and damage	If a problem arises ↓ Replace torsion bar linkage (3).
8	Check condition of torsion bar pivot bushing on spring link	If a problem arises ↓ Replace spring link.
		Model 205 except code M005 (Vehicles with 4MATIC/all-wheel drive) Model 213 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR33.15-P-0170LW
		Model 238 except code M005 (Vehicles with 4MATIC/allwheel drive)	AR33.15-P-0170LWO
9	Install in the reverse order	Model 238 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR33.15-P-0170LWO

Fig 2: Identifying Wrench SW 12 (451 589 00 10 00)

Courtesy of MERCEDES-BENZ USA
