Remove/Install Rear Axle Coil Spring - AR32.20-P-0232LWO
Model 238
Except Code 489 (AIR BODY CONTROL)
| Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under tension | Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves. | AS00.00-Z-0001-01A | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove rear complete wheels | AR40.10-P-1102A | |

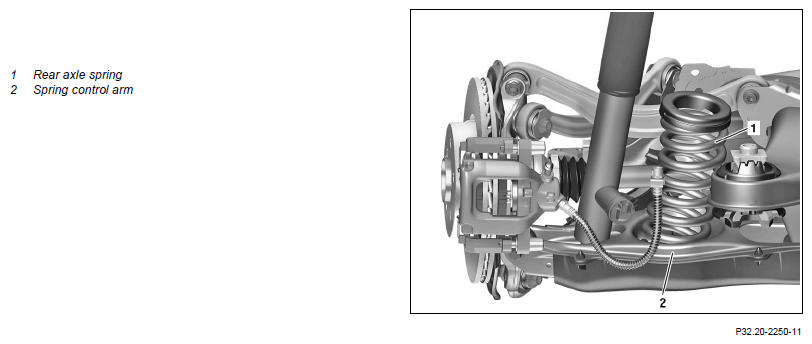

| 2 | Remove shock absorber from spring control arm (2) | AR32.25-P-0110LWO | |
| 3 | Tension rear axle spring (1) | AR32.20-P-0200-06LW | |
| Fig 2 | |||
| Fig 3 | |||
| 4 | Remove rear axle spring (1) from spring control arm (2) | ||

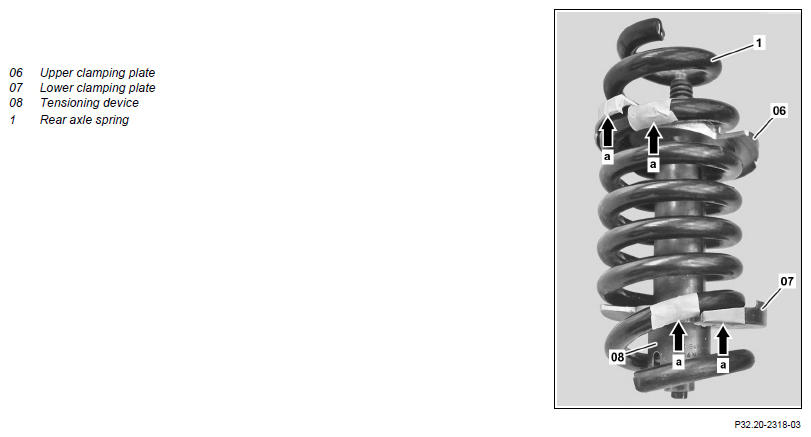

| 5 | Mark installation position of rear axle spring (1) relative to upper clamping plate (06) and lower clamping plate (07) using suitable adhesive strips (arrows a) | ||
| 6 | Relieve rear axle spring (1) | Clamping plates |
Fig 2 |
| Tensioning device | Fig 3 | ||
| 7 | Transfer markings using adhesive strips (arrows a) to new rear axle spring (1) | When replacing rear axle spring (1). | |
| Check | |||

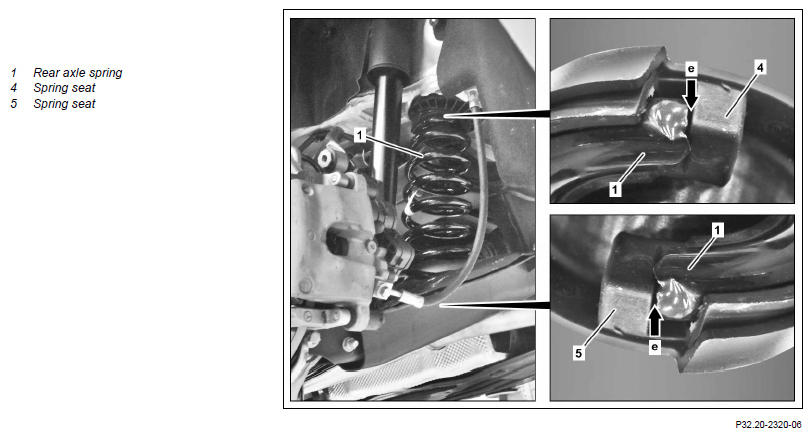

| 8 | Check rear axle spring (1) for paint damage | When reinstalling rear axle spring (1). In event of paint damage ↓ Repair any paint damage using a black touch- up paint pen. |
|

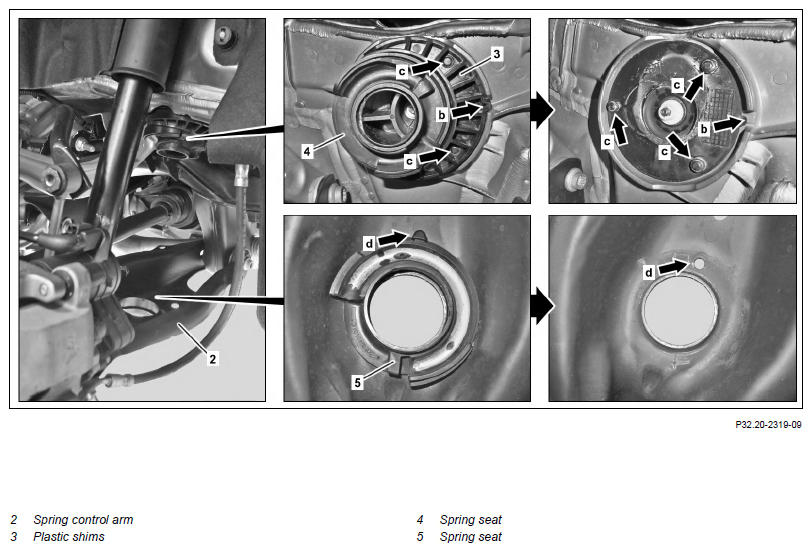

| 9 | Check plastic shims (3) with spring seat (4) and spring seat (5) for damage | If required ↓ Replace plastic shims (3) with spring seat (4) or spring seat (5). |
|
| 10 | Install in the reverse order | ||
| Check | |||
| 11 | Check/correct headlamp adjustment | When replacing rear axle spring (1). | |
| AP82.10-P-8260J |
