Remove/Install Rear Shock Absorber - AR32.25-P-0110LWO

Model 238

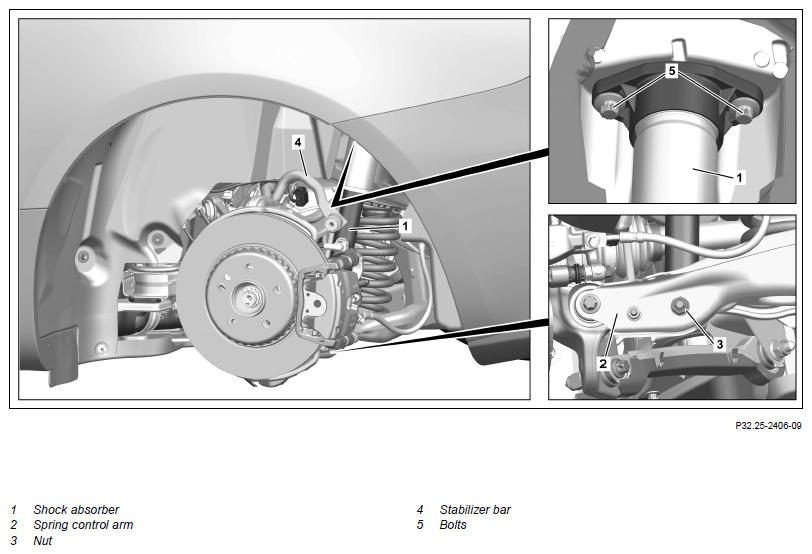

Fig 1: Rear Shock Absorber Components Location - Model 238 (Shown Except Code 489)

Courtesy of MERCEDES-BENZ USA

Shown Except Code 489 (AIR BODY CONTROL)

Shown With Code 489 (AIR BODY CONTROL)

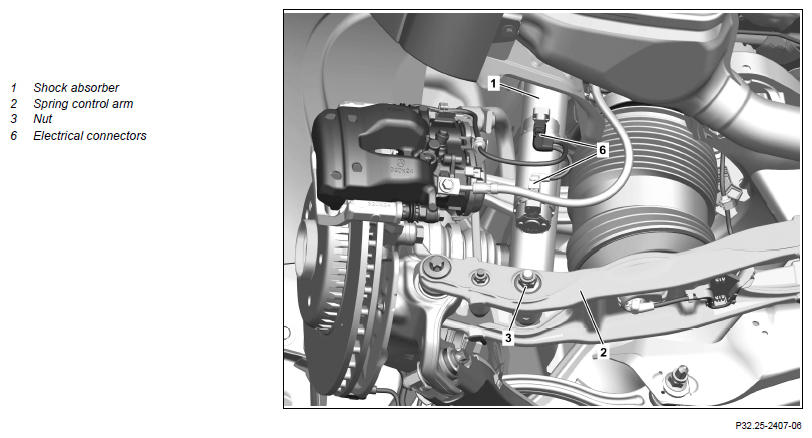

Fig 2: Rear Shock Absorber Components Location - Model 238 (Shown With Code 489)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown Except Code 489 (AIR BODY CONTROL)

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on AIR BODY CONTROL	Model 238 with code 489 (AIR BODY CONTROL)	AH32.22-P-1000-03LWO
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Secure vehicle on vehicle lift		AR00.60-P-0100CW
2	Remove rear wheel		AR40.10-P-1102A
3	Remove cover from spring control arm (2)
4	Release fender liner in rear fender in area of shock absorber (1)		AR88.10-P-1400LWE
5	Disconnect electrical connectors (6) and place lines to one side	If electrically adjustable shock absorbers (1) are installed.
6	Unscrew nut (3)	Self-locking nut, shock absorber to spring control arm	*BA32.25-P-1001-03P
7	Prop up spring link (2) using a suitable hydraulic lifting device and remove bolt from spring link (2)
8	Remove screws/bolts (5)	Bolt, shock absorber to body	*BA32.25-P-1002-03P

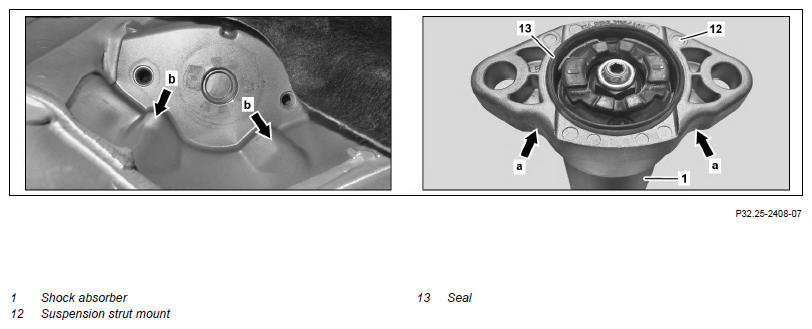

9	Press shock absorber (1) together and remove upward	: Ensure that the cutouts (arrows a) in suspension strut mount (12) match with the elevations (arrows b) in the body.
	Check
10	Check shock absorber (1), suspension strut mount (12) and seal (13) for damage and leakage	The shock absorber (1) is only available as an assembly with the suspension strut mount (12). If a problem arises ↓ Replace shock absorber (1).
11	Install in the reverse order
