Remove/Install Left Front Body Acceleration Sensor - AR32.22-P-0004LWO
Model 238
With Code 489 (AIR BODY CONTROL)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove left front engine compartment paneling | AR61.20-P-1105LWE | |

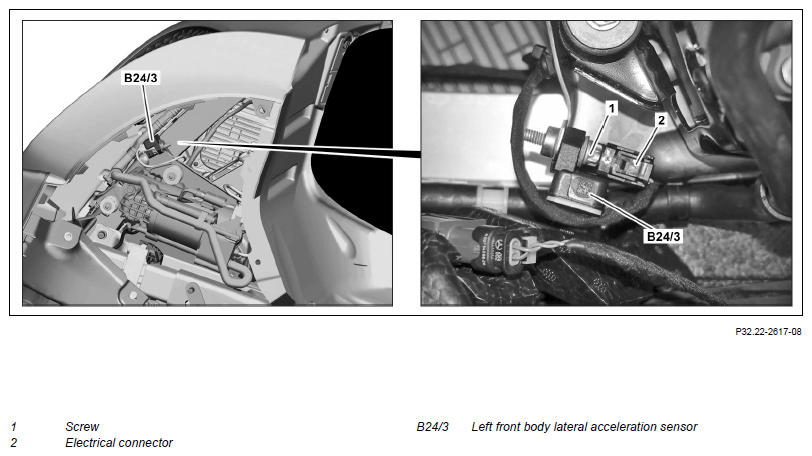

| 3 | Remove bolt (1) | ||
| 4 | Disconnect electrical connector (2) and remove front left body acceleration sensor (B24/3) | ||
| 5 | Install in the reverse order |
