Remove/Install AIR BODY CONTROL Control Unit - AR32.22-P-6000LWO
Model 238.3
With Code 489 (AIR BODY CONTROL)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on AIR BODY CONTROL | AH32.22-P-1000-03LWO | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of AIR BODY CONTROL control unit (N51/3) or AIR BODY CONTROL Plus control unit (N51/8) | When replacing AIR BODY CONTROL control unit (N51/3) or AIR BODY CONTROL Plus control unit (N51/8). | |
| AD00.00-P-2000-06LWO | |||
| 2 | Remove trunk floor and the cover that lies below it | AR68.30-P-4600LWO | |
| 3 | Disconnect electrical connectors (1) or electrical connector (2) | ||

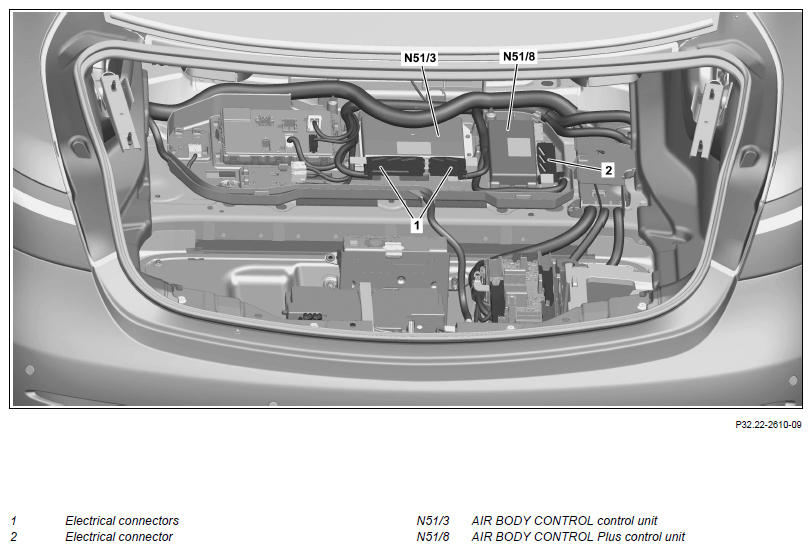

| 4 | Unclip AIR BODY CONTROL control unit (N51/3) AIR BODY CONTROL Plus control unit (N51/8) and remove | ||
| 5 | Install in the reverse order |
