Remove/Install AIR BODY CONTROL Control Unit - AR32.22-P-0006LWP
Model 238.4
With Code 489 (AIR BODY CONTROL)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of AIR BODY CONTROL control unit (N51/3) | When replacing AIR BODY CONTROL control unit (N51/3). | |
| AD00.00-P-2000-06LWO | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove trunk recess cover | AR68.30-P-4600LWO | |

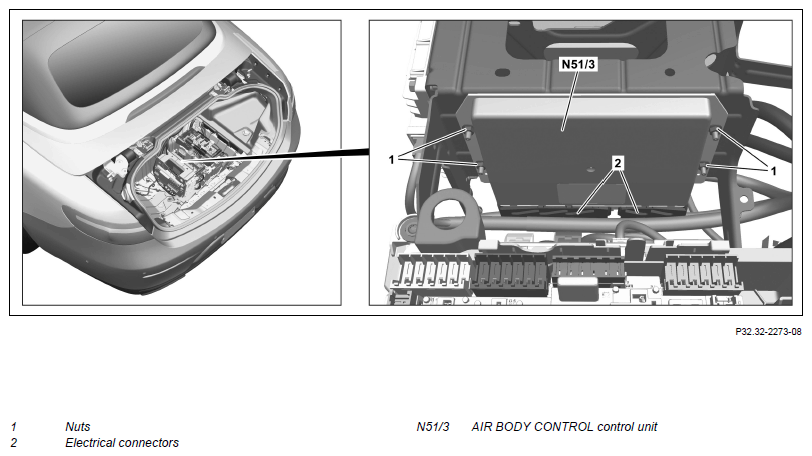

| 4 | Unscrew nuts (1) | ||
| 5 | Remove control unit for AIR BODY CONTROL (N51/3) from bracket | ||
| 6 | Separate electrical connectors (2) | ||
| 7 | Install in the reverse order |
