Remove/Install ADS Control Unit - AR32.32-P-0500LWP
Model 238.4
with code 459 (Steel suspension with adjustable damping)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform commissioning of adaptive damping system control unit (N51/5) | When replacing the adaptive damping system control unit (N51/5). | |
| AD00.00-P-2000-06LWO | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove trunk recess cover | AR68.30-P-4600LWO | |

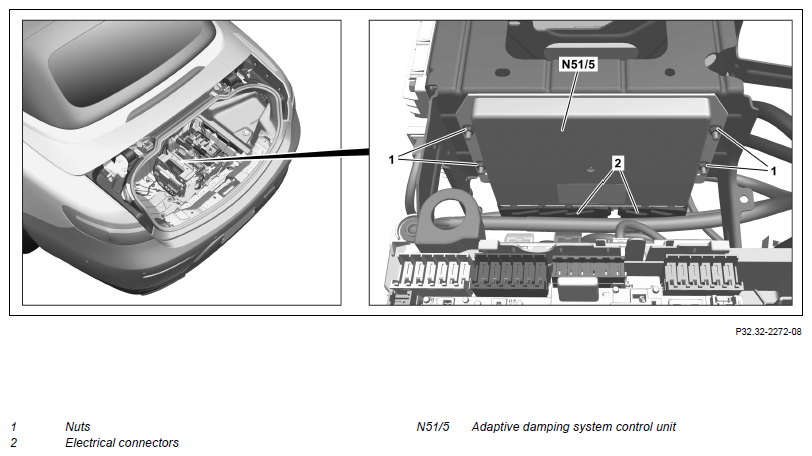

| 4 | Unscrew nuts (1) | ||
| 5 | Remove Adaptive Damping System control unit (N51/5) from bracket | ||
| 6 | Separate electrical connectors (2) | ||
| 7 | Install in the reverse order |
