Remove/Install ADS Control Unit - AR32.32-P-0500LWO
Model 238.3
with code 459 (Steel suspension with adjustable damping)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of adaptive damping system control unit (N51/5) | When replacing the adaptive damping system control unit (N51/5). | |
| AD00.00-P-2000-06LWO | |||
| 2 | Remove trunk floor and the cover that lies below it | AR68.30-P-4600LWO | |
| 3 | Separate electrical connections (1) | ||

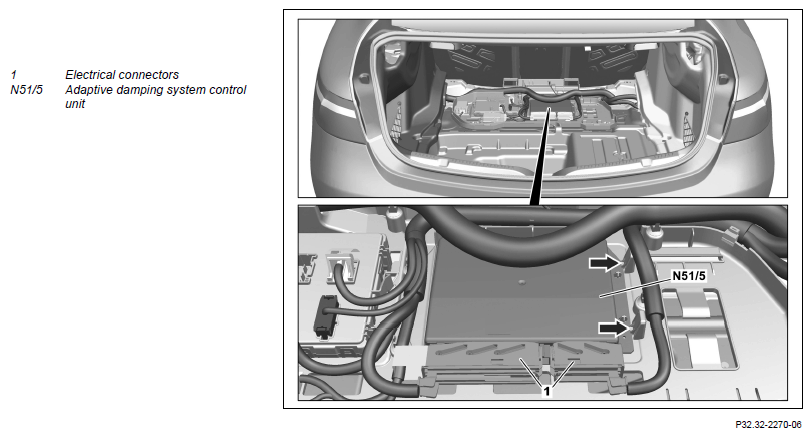

| 4 | Unclip Adaptive Damping System control unit (N51/5) from holder (arrows) and take off | ||
| 5 | Install in the reverse order |
