AIR BODY CONTROL, Function - GF32.22-P-0004FH

Model 238

Up To Model Year 2021

With Code 489 (AIR BODY CONTROL)

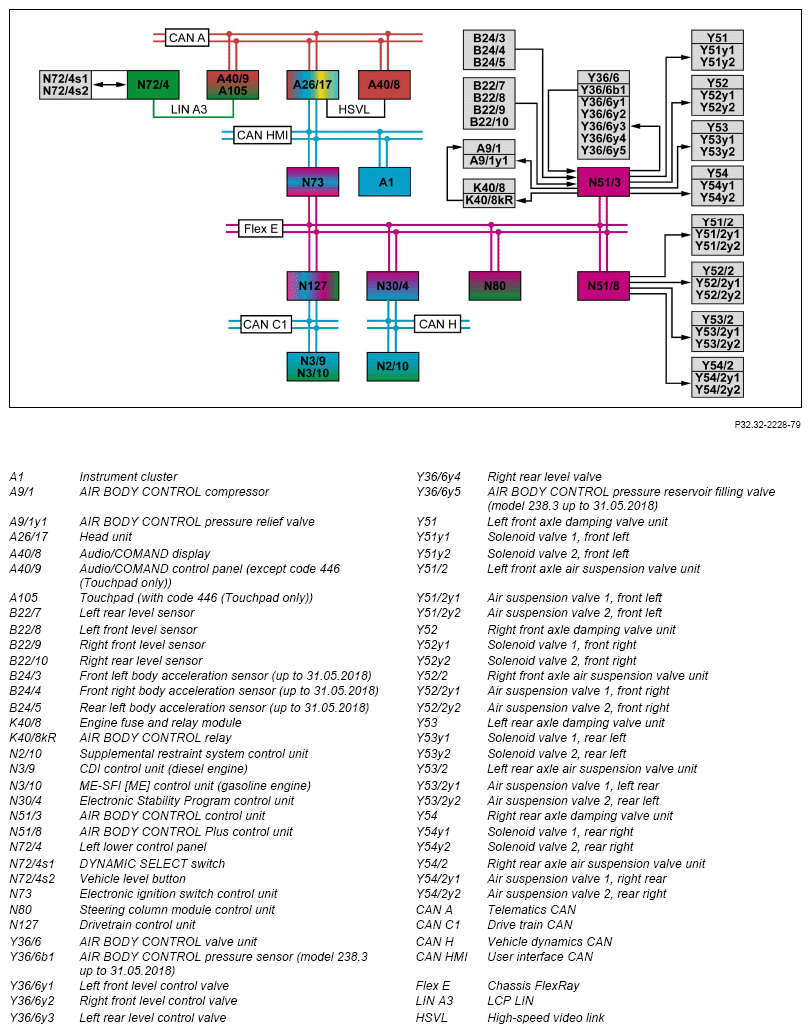

G15466883Courtesy of MERCEDES-BENZ USA

AIR BODY CONTROL, general

AIR BODY CONTROL is the combination of multiple-chamber air suspension and continuous damping adjustment. Both damping and suspension at each individual wheel are adapted to the ambient conditions. Level control ensures optimum suspension and constant ground clearance even when the vehicle is loaded. To improve driving safety and reduce fuel consumption, the vehicle is lowered automatically at higher speeds. Furthermore, it is also possible to adjust the vehicle level manually.

To realize various compliance characteristics, the air suspension bellows consist of several air chambers which are connected or disconnected to each other by switching the air suspension valves.

The AIR BODY CONTROL function includes the following subfunctions:

Wake-up mode

After unlocking the vehicle, the AIR BODY CONTROL control unit is activated by the active suspension FlexRay to check the current vehicle level. The AIR BODY CONTROL control unit detects critical conditions as faults such as, e.g. low vehicle level at front axle in which the full wheel angle can no longer be guaranteed. In the instrument cluster, the driver is made aware of this situation by the message "Vehicle being raised, please wait".

IMPORTANT If the vehicle has not been used for a long time (> 4 h), it is raised to the normal level when the engine is started. If an increased vehicle level was set during the last journey or the vehicle's off-time is less than 4 h, the vehicle level last set is retained.

IMPORTANT Model 238.3 up to 31.05.18 with code 489 (AIR BODY CONTROL)

If the pressure in the central reservoir is insufficient, the vehicle level is corrected immediately.

IMPORTANT Model 238.3 as of 6/1/18, 238.4

up to model year 2021

with code 489 (AIR BODY CONTROL)

The vehicle level is corrected when the engine is started, as the AIR BODY CONTROL compressor is not actuated until the engine is running.

Additional function requirements for level control

IMPORTANT The CDI control unit or the ME-SFI control unit sends the "Engine running" signal via the drive train CAN, powertrain control unit and chassis FlexRay to the AIR BODY CONTROL control unit.

Level control

The level control system controls the air suspension individually at each wheel. Under normal operating conditions, the air suspension operates with different pressures depending on the load. To supply compressed air, the AIR BODY CONTROL control unit actuates the AIR BODY CONTROL compressor via the AIR BODY CONTROL relay in the engine fuse and relay module. Model 238.3 up to 31.05.2018 is equipped with a pressure reservoir that buffers supply bottlenecks. Depending on the selected transmission mode, the vehicle level is reduced or increased and can also be changed by pressing the vehicle level button in the left lower control panel.

Selection of transmission mode

By operating the DYNAMIC SELECT switch in the left lower control panel, the driver can select between four preconfigured transmission modes and an individual transmission mode. Depending on the selected transmission program, one of the following settings is activated for the suspension:

The left lower control panel sends the status of the DYNAMIC SELECT switch over the LCP-LIN, Audio/COMAND control panel or the touchpad, telematics CAN, head unit, user interface CAN, electronic ignition lock control unit and the suspension FlexRay to the Electronic Stability Program control unit. The Electronic Stability Program control unit then sends the request for the selected transmission mode via the chassis FlexRay to the AIR BODY CONTROL control unit.

The symbol for the selected transmission mode is displayed in the instrument cluster. The current transmission mode settings are also briefly shown in the Audio/COMAND display.

The AIR BODY CONTROL control unit sends information about the selected transmission mode via the chassis FlexRay, electronic ignition lock control unit and user interface CAN to the head unit and to the instrument cluster. The head unit generates the corresponding image data and sends a switch-on request to the Audio/COMAND display via telematics CAN. The image data is transmitted via the high-speed video link to the Audio/COMAND display.

IMPORTANT Selection of the transmission mode also affects adjustment of the damping.

Selection of vehicle level

At a speed below 80 km/h, the driver can set the vehicle level by pressing the vehicle level button in the left lower control panel. He can choose between the following vehicle levels:

The left lower control panel sends the status of the vehicle level button over the LCP-LIN, Audio/COMAND control panel or the touchpad, telematics CAN, head unit, user interface CAN, electronic ignition lock control unit and the suspension FlexRay to the AIR BODY CONTROL control unit. The AIR BODY CONTROL control unit sends the request to switch the LED in the vehicle level button on or off, in the reverse direction to the left lower control panel. The LED is switched on when the vehicle is at the increased level.

An appropriate message additionally appears in the instrument cluster. The AIR BODY CONTROL control unit sends the request to output a message via the chassis FlexRay, electronic ignition lock control unit and user interface CAN to the instrument cluster.

Detection of vehicle level

The vehicle level is detected for each individual wheel by the following sensors:

The AIR BODY CONTROL control unit reads in the signals from the level sensors directly and evaluates them.

Adjust vehicle level

By increasing the air pressure in one of the multiple-chamber spring bellows, the vehicle level is increased at the wheel concerned.

Conversely, the vehicle level is reduced if air is released from the multiple-chamber spring bellows. The compressed-air supply system of the multi-chamber system air suspension bellows on model 238.3 up to 31.05.2018 through the AIR BODY CONTROL pressure reservoir over the AIR BODY CONTROL compressor. On model 238.4 and model 238.3 as of 01.06.2018 the compressed-air supply system for the multi-chamber system air suspension bellows is provided by the AIR BODY CONTROL compressor.

The AIR BODY CONTROL control unit actuates the AIR BODY CONTROL compressor through the AIR BODY CONTROL relay, AIR BODY CONTROL pressure reservoir filling valve (model 238.3 up to 31.05.2018) and the corresponding level control valves directly. To protect against overloading, the AIR BODY CONTROL control unit monitors the operating time of the AIR BODY CONTROL compressor. When the maximum operating time is reached, the AIR BODY CONTROL control unit switches off the AIR BODY CONTROL compressor for the duration of the cooling-down phase. On model 238.3 up to 31.05.2018, the pressure in the pressure reservoir is measured by the AIR BODY CONTROL pressure sensor. The AIR BODY CONTROL control unit reads in the signals from the AIR BODY CONTROL pressure sensor directly.

Increasing vehicle level

Reduce vehicle level

To control the compressed air supply, the AIR BODY CONTROL control unit additionally evaluates the atmospheric pressure and the intake air temperature. The CDI control unit or the ME-SFI control unit sends corresponding information via the drive train CAN, powertrain control unit and chassis FlexRay to the AIR BODY CONTROL control unit.

To realize various compliance characteristics, the air suspension bellows consist of several air chambers which are connected or disconnected to each other by switching the air suspension valves. The AIR BODY CONTROL control unit sends a corresponding request via the chassis FlexRay to the AIR BODY CONTROL Plus control unit which then actuates the respective air suspension valves directly.

Vehicle levels
Level designation Level [mm] Vehicle speed [km/h] Comment
Comfort 0 <125 -
  -15 > 125 Raise to 0 mm if below 80 km/h
Sport -15 - -
SPORT PLUS -15 - -
Higher level +25 < 120 Lower to 0 mm if above 80 km/h for longer than 3 min

Damping adjustment

The continuous damping adjustment function adapts the damping at each individual wheel. This improves driving safety and driving comfort.

Adjustment of the damping depends on the following factors:

IMPORTANT Information on selecting the transmission mode is given in the section "Level control".

The damping is adjusted harder or softer depending on the driving situation. If the sensor system detects a sporty driving style for example, the comfortable basic damping becomes harder automatically. The electronics works continuously within a broadly spread damping performance map. The damping force is adapted at each individual wheel. As a result, the vehicle rolls smoothly even on poor road surfaces, without impairing driving stability. The previously set damping stage is active when the ignition is switched on.

Recording of driving condition

The driving condition is defined through the following variables:

Vehicle body acceleration on vehicles up to 31.05.2018 is measured by the following sensors:

The AIR BODY CONTROL control unit reads in the signals from the acceleration sensors directly. On vehicles as of 01.06.2018 the vehicle body acceleration is derived from the following information that describes the driving condition:

The AIR BODY CONTROL control unit also receives the following information over the suspension FlexRay. This is then used to calculate the ideal damping stage or damping force at each shock absorber:

Damping adjustment

The AIR BODY CONTROL control unit uses the input signals (driving condition) to determine the ideal damping stage in each case and then actuates the following assembly parts directly:

The continuous damping adjustment is implemented using single-tube gas-filled shock absorbers. The damping valve units are located at the bottom side on the single-tube gas-filled shock absorbers.

One check valve each is integrated in the main piston and in the bottom valve of the single-tube gas-filled shock absorbers. These check valves ensure that an identical flow direction is given through the damping valve unit, both in the rebound and the compression stages. This design enables the damping valve unit of a shock absorber to consist of a single regulated proportional valve only.

The flow area in the damping valve unit can be continuously adjusted through actuation of this proportional valve. More or less oil can flow through the damping valve unit to match the set cross section. The damping behavior then becomes correspondingly softer or harder. When the ESP® is activated, dampening is automatically switched to a firm damping stage (Sport) in critical limits of road-holding situations, irrespective of the driver's request. This enables the vehicle to be stabilized faster. The hard damping stage remains active for as long as the driving situation requires this.

Additional function requirements for system and warning messages

IMPORTANT The electronic ignition lock control unit sends the status of circuit 15 via the interior CAN to the AIR BODY CONTROL control unit.

System and warning messages

Various texts with safety and system-relevant contents are displayed in the instrument cluster. These contents are prioritized accordingly depending on the severity of a fault and the urgency of the remedy. If several faults exist at the same time, then several texts will be output.

The AIR BODY CONTROL control unit sends corresponding requests via the chassis FlexRay, electronic ignition lock control unit and user interface CAN to the instrument cluster.

Texts displayed in instrument cluster:

Lock position

When raising the vehicle, e.g. using a jack, air is continuously vented from the air suspension bellows to lower the vehicle. To stop this happening, the reduction in wheel load must be automatically detected, whereupon a locking position is then adopted. To determine whether the vehicle has been raised, a small amount of compressed air is released. If the level sensors do not detect a change in the vehicle level, the locking position is activated.

The locking position is a pure software function which prevents the actuation of the level control valves (draining process). The locking position is activated by the AIR BODY CONTROL control unit by evaluating the signals from the level sensors. There is no fault entry and no display in the instrument cluster.

At a vehicle speed above 10 km/h, the locking position is canceled automatically. The level control system is then in operation again.

IMPORTANT Actuation of the output stages in the AIR BODY CONTROL control unit via the diagnosis is always possible irrespective of the locking position.

  Electrical function schematic for AIR BODY CONTROL   PE32.32-P-2053-97DCA
  Overview of system components of AIR BODY CONTROL   GF32.22-P-9993FH
