Remove/Install Rear Side Airbag - AR91.60-P-0694CLW
Model 205.3/4
With Code 298 (Rear sidebag with belt force limiter)
Model 238
With Code 293 (Sidebag in rear left and right)

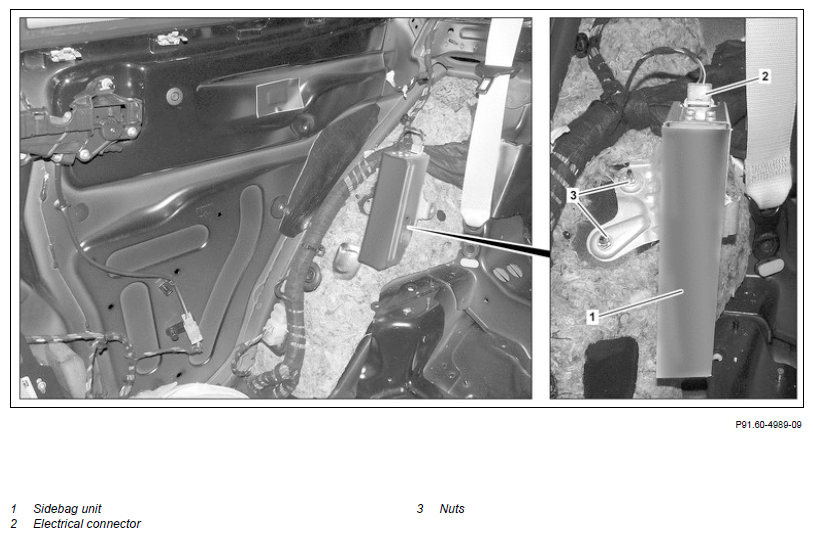

Fig 1: Rear Side Airbag Components Location - Model 238 With Code 293 (Shown On Right Side On Model 205.3)
Shown on right side of vehicle, model 205.3
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove rear passenger compartment side trim panel | Model 205.3 with code 298 (Rear sidebag with belt force limiter) | AR68.30-P-4780CLW |
| Model 205.4 with code 298 (Rear sidebag with belt force limiter) | AR68.30-P-4784LWR | ||
| Model 238 with code 293 (Sidebag in rear left and right) | AR68.30-P-4784LWO | ||
| 2 | Disconnect battery ground line | Model 205.3/4 with code 298 (Rear sidebag with belt force limiter) | AR54.10-P-0003LW |
| Model 238 with code 293 (Sidebag in rear left and right) | AR54.10-P-0003LWO | ||
| 3 | Release and disconnect electrical connector (2) at sidebag unit (1) | Otherwise, proper operation of the sidebag unit (1) cannot be ensured. |
|
| 4 | Unscrew nuts (3) | *BA91.6G-P-1005-01O | |
| 5 | Remove side airbag unit (1) | ||
| 6 | Install in the reverse order | ||
| 7 | Check Supplemental Restraint System (SRS) with diagnostic system | When replacing the sidebag unit (1). | |
| Model 205.3/4 with code 298 (Rear sidebag with belt force limiter) | AD00.00-P-2000-04B | ||
| Model 238 with code 293 (Sidebag in rear left and right) | AD00.00-P-2000-06LWO |
AIRBAG
| Number | Designation | Model 205.0/1/2/3 | Model 205.4 | |
|---|---|---|---|---|
| BA91.60-P-1005-01Q | Nut/screw, rear sidebag unit to body | Nm | 6 | 6 |
AIRBAG
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA91.60-P-1005-01Q | Nut/screw, rear sidebag unit to body | Nm | 6 |
