Remove/Install Left Rear Folding Seat Backrest - AR91.12-P-1724LWO
Model 238.3

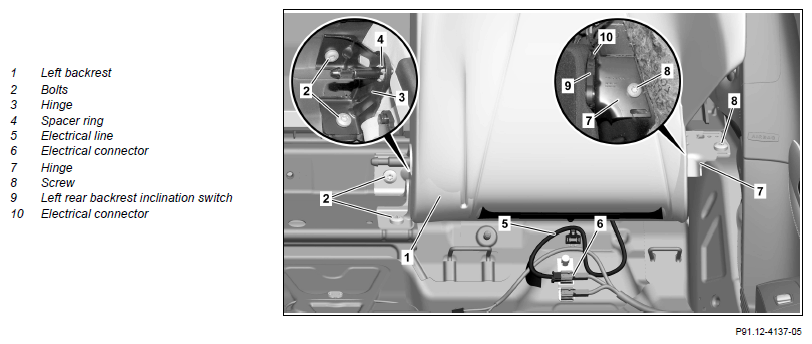

| Remove/install | |||
| 1 | Remove rear center seat backrest | AR91.12-P-1723LWO | |
| 2 | Remove left side bolster | AR91.12-P-1710LW | |
| 3 | Disconnect electrical connection (6) | ||
| 4 | Expose electric line (5) | ||
| 5 | Release left seat backrest (1) and fold forward | ||
| 6 | Remove screw/bolt (8) on pivot bearing (7) | *BA91.12-P-1003-03M | |
| 7 | Disconnect electrical connector (10) at left rear seat backrest inclination switch (9) | ||
| 8 | Remove screws/bolts (2) on pivot bearing (3) | *BA91.12-P-1004-03M | |
| 9 | Remove left seat backrest (1) | Otherwise, the spacer ring (4) on the bearing pin will be damaged. |
|
| 10 | Install in the reverse order |
REAR SEATS
| Number | Designation | Model 238.3 | |
|---|---|---|---|
| BA91.12-P-1003-03M | Bolt, outer pivot bearing to body | Nm | 40 |
REAR SEATS
| Number | Designation | Model 238.3 | |
|---|---|---|---|
| BA91.12-P-1004-03M | Bolt, center pivot bearing to body | Nm | 40 |
