Remove/Install Center Rear Folding Seat Backrest - AR91.12-P-1723LWO

Model 238.3

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove right rear backrest		AR91.12-P-1722LWO

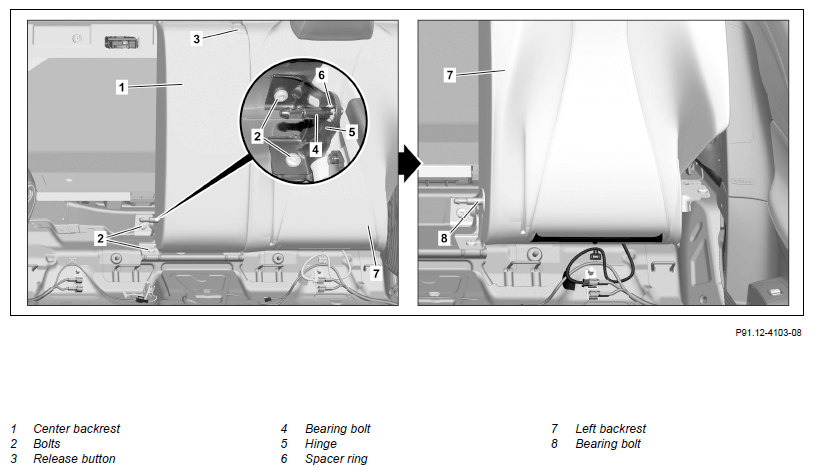

2	Release center seat backrest (1) at release knob (3) and fold forward
3	Remove screws (2) from pivot bearing (5)	Bolt, center pivot bearing to body	*BA91.12-P-1004-03M
4	Pull center seat backrest (1) out of bearing pin (8) of left seat backrest (7) and remove	Do not tilt pivot bearing (5). Otherwise, the spacer ring (6) may be damaged by the bearing pin (4).
5	Install in the reverse order

REAR SEATS

Number	Designation		Model 238.3
BA91.12-P-1004-03M	Bolt, center pivot bearing to body	Nm	40
