Unfasten/Fasten Cover On Front Seat Cushion - AR91.18-P-1802-01LW

Model 205, 238, 253, 293

Model 206, 254

Model 213, 257, 290

Model 223

Model 294, 295, 296, 297

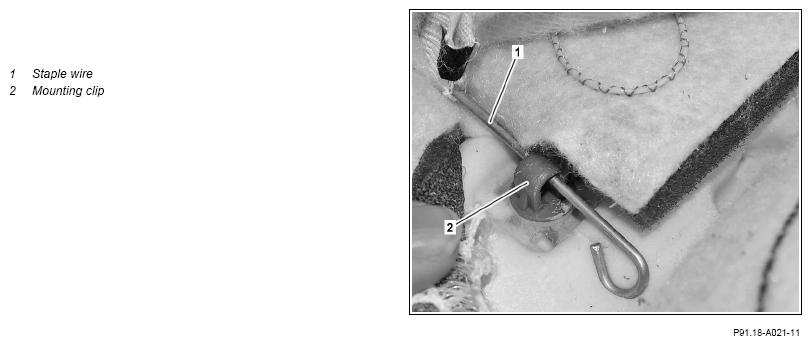

Fastening type A

Courtesy of MERCEDES-BENZ USA

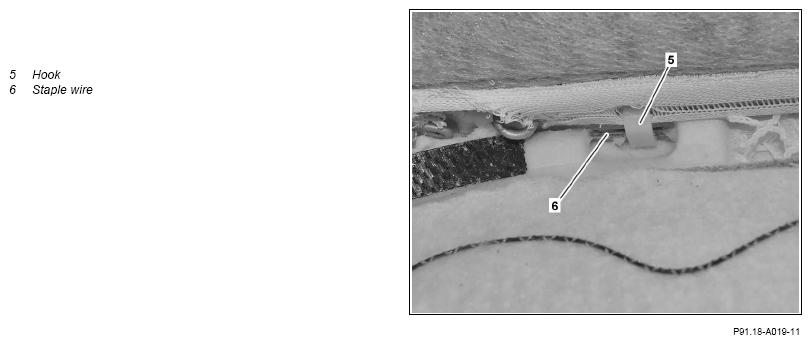

Fastening type B

Courtesy of MERCEDES-BENZ USA

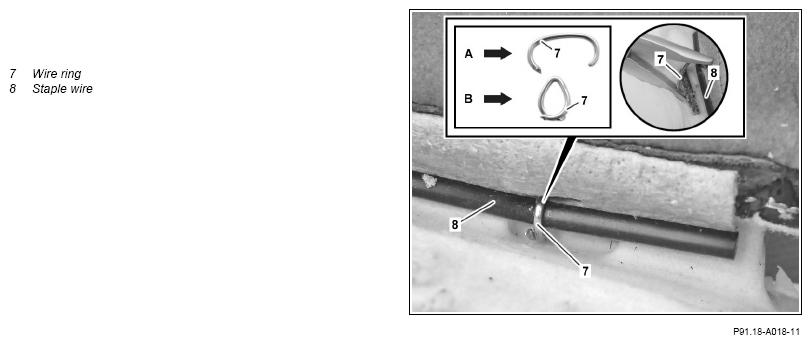

Fastening type C

Courtesy of MERCEDES-BENZ USA

Release

1. Unhook staple wire (1) at retaining clip (2) with dismantling tool.

   For covers with fastening type A

2. Unhook hook (5) at staple wire (6).

   For covers with fastening type B

3. Remove wire ring (7) on staple wire (8).

   For covers with fastening type C

   Carefully remove residue from wire rings (7).

   Otherwise damage may occur.

   Mount

4. Hook in staple wire (1) at retaining clip (2) with dismantling tool.

   For covers with fastening type A

5. Hook in hook (5) at staple wire (6).

   For covers with fastening type B

6. Fasten staple wire (8) with wire ring (7) on eyelet of seat cushion padding.

   For covers with fastening type C

   Insert open wire ring (7) (arrow A), as shown, into padding clip pliers and close completely by pressing together (arrow B).
