Remove/Install Right Rear Folding Seat Backrest - AR91.12-P-1722LWO
Model 238.3
| Remove/install | |||

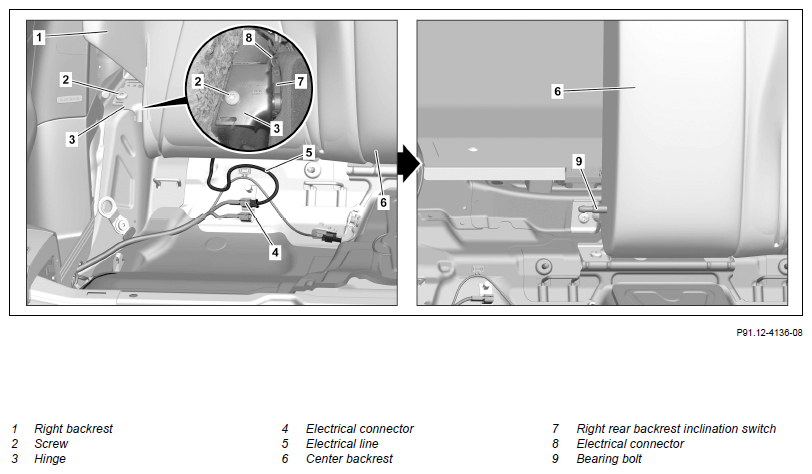

| 1 | Remove right side bolster | AR91.12-P-1710LW | |
| 2 | Disconnect electrical connection (4) | Model 238.3 with code 872 (Heated rear seats) | |
| 3 | Expose electric line (5) | Model 238.3 with code 872 (Heated rear seats) | |
| 4 | Release right backrest (1) and fold forward | ||
| 5 | Remove screw (2) from pivot bearing (3) | *BA91.12-P-1003-03M | |
| 6 | Disconnect electrical connector (8) from right rear seat backrest inclination switch (7) | ||
| 7 | Pull right seat backrest (1) from bearing pin (9) of center seat backrest (6) and remove | Otherwise, the spacer ring on the bearing pin (9) will be damaged. |
|
| 8 | Install in the reverse order |
REAR SEATS
| Number | Designation | Model 238.3 | |
|---|---|---|---|
| BA91.12-P-1003-03M | Bolt, outer pivot bearing to body | Nm | 40 |
