Remove/Install Desiccant Cartridge - AR83.30-P-6521LWO
Model 238
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0007-01A | |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0006-01A | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notes on handling refrigerant R134a | AH83.30-P-0003-01KOA | ||
| Notes on handling refrigerant R1234yf | AH83.30-P-0003-02A | ||
| Remove/install | |||
| 1 | Remove condenser | Model 238 Model 238 with engine 256.9, 264, 274, 276, 642, 654, 656 |
AR83.30-P-6540LWO |

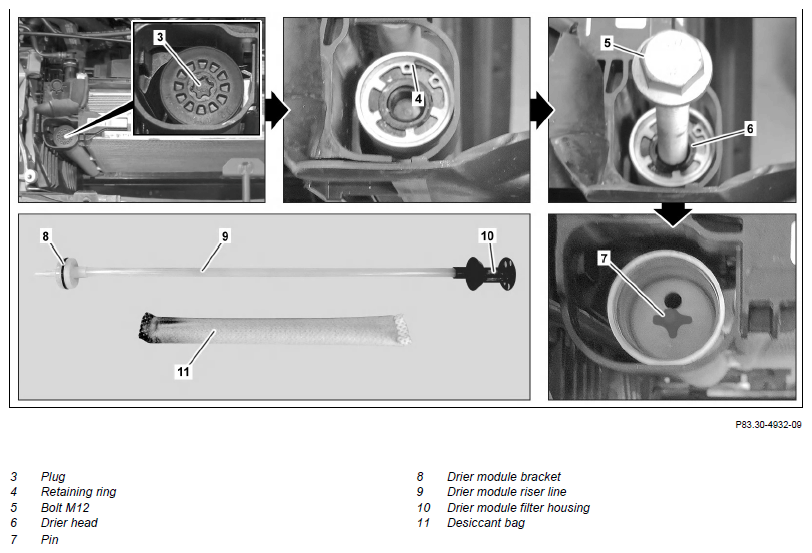

| 2 | Unscrew plug (3) | *BA83.30-P-1008-01R | |
| 3 | Remove retaining ring (4) | ||
| 4 | Screw screw/bolt M12 (5) into drier head (6) and pull out drier head (6) | ||
| 5 | Use suitable pliers to pull out the drier module bracket (8) at pin (7) | ||
| 6 | Remove drier module riser line (9) together with drier module filter housing (10) | Apply new desiccant bag (11) on drier module riser line (9). |
|
| 7 | Install in the reverse order |
AIR CONDITIONING
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA83.30-P-1008-01R | Plug to condenser | Nm | 4 |
