Remove/Install Low Temperature Circuit Additional Radiator - AR09.41-P-3001MSA
Engine 256.9 In Model 213, 238, 257, 290

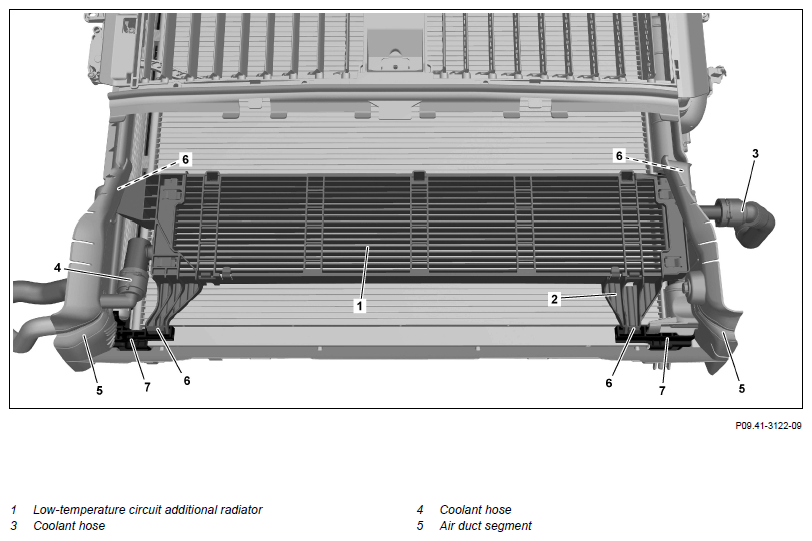

Shown on MODEL 257 without code M016 (Uprated engine)

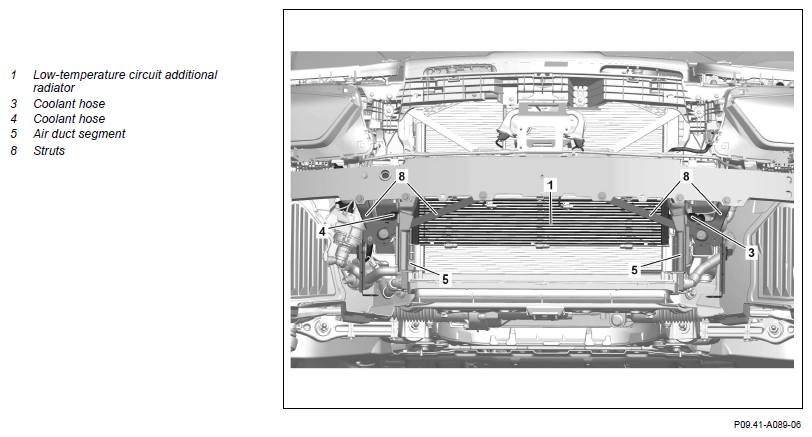

Shown on model 290
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove lower radiator shutters. | Engine 256.9 in model 213, 238, 257 with code 2U1 (Radiator shutter) Engine 256.9 in model 290 |
AR20.20-P-3884OIB |
| 2 | Remove additional cooler. | Engine 256.9 in model 213, 238, 257 with code M016 (Uprated Engine) Engine 256.9 in model 290 |
AR20.20-P-3866MSA |
| 3 | Drain coolant from Low Temperature circuit. | AR09.41-P-6834MSA | |
| 4 | Remove struts (8). | Engine 256.9 in model 290 |
*BA62.30-P-1004-01H |
| *BA62.30-P-1003-01H | |||
| 5 | Remove coolant hose (3) from Low Temperature circuit additional cooler (1) and seal openings with protective covers. | AR20.20-P-7441-01RQ | |
| Fig 1 | |||
| 6 | Remove coolant hose (4) from Low Temperature circuit additional cooler (1) and seal openings with protective covers. | AR20.20-P-7441-01RQ | |
| Fig 1 | |||
| 7 | Unclip air duct segments (5). | ||
| 8 | Unclip Low Temperature circuit additional cooler (1) and remove. | ||
| 9 | Install in the reverse order. |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 290 | ||
|---|---|---|---|---|
| BA62.30-P-1003-01H | Bolt, strut to cross member | M8 | Nm | 20 |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 290 | ||
|---|---|---|---|---|
| BA62.30-P-1004-01H | Bolt, strut to soundproofing | M8 | Nm | 20 |
