Remove/Install Additional Radiator - AR20.20-P-3866MSA
Engine 256.9 in model 213, 238, 257
with code M016 (Uprated engine)
Engine 256.9 in model 290
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Drain off coolant. | AR20.00-P-1142MSA | |

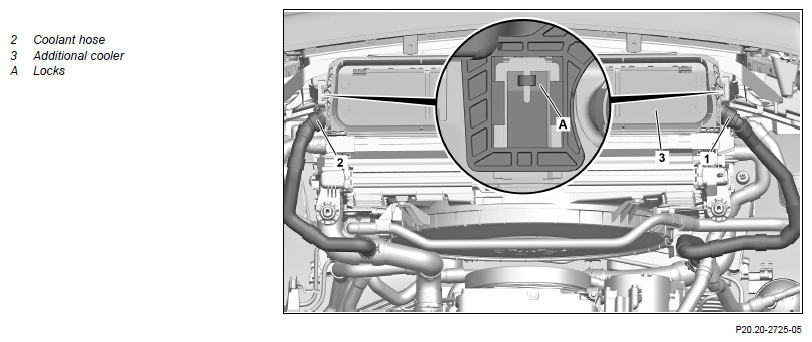

| 2 | Remove coolant hose (2) from additional cooler (3) and seal openings with suitable protective covers. | AR20.20-P-7441-01RQ | |
| Fig 2 | |||
| 3 | Release locks (A) and remove additional cooler (3) with the supporting frame. | ||
| 4 | Remove additional cooler (3) from the supporting frame. | When replacing additional cooler (3). | |
| 5 | Install in the reverse order. |
