Remove/Install Upper Control Panel Control Unit - AR54.21-P-1262LWE
Model 213, 238
Shown On Model 213 with transmission 725
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove climate control operating unit (N58/1) | Model 238 | AR83.30-P-6630LWO |
| Model 213 | AR83.30-P-6630LW | ||
| 2 | Remove bolts (3) and remove stowage compartment (2) | Model 213, 238 with transmission 725 | |

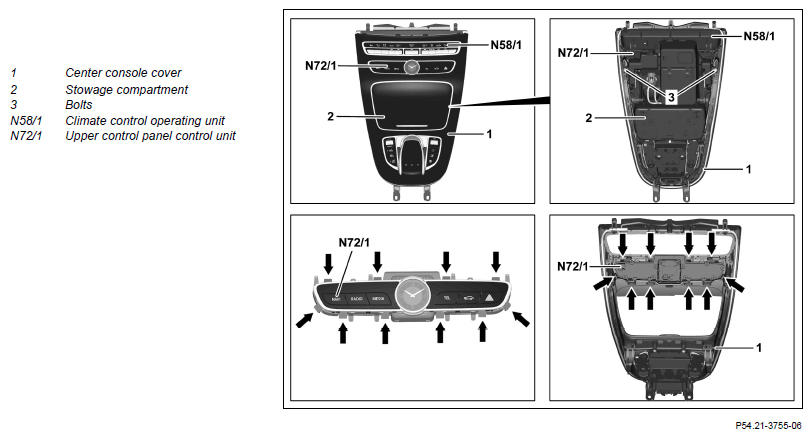

| 3 | Unclip upper control panel control unit (N72/1) (arrows) | Fig 1 | |
| 4 | Install in the reverse order |
