Remove/Install Front Climate Control Operating Unit - AR83.30-P-6630LWO
Model 238
Shown with transmission 725

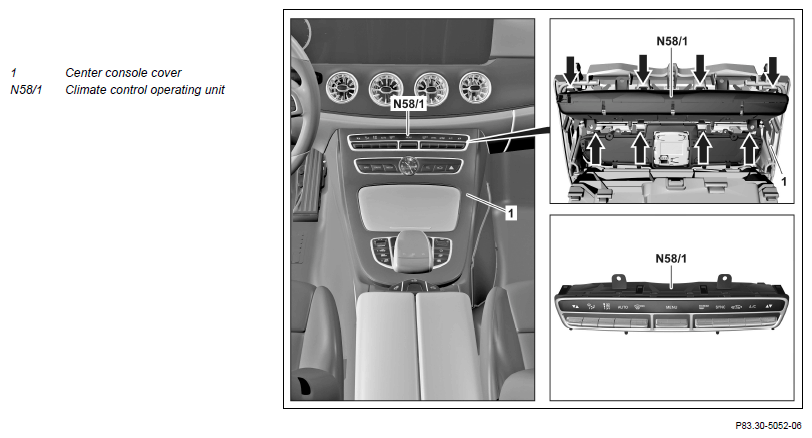

Fig 1: Front Climate Control Operating Unit Components Location - Model 238 (Shown With Transmission 725)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove center console cover (1) | Model 238 with transmission 725 | AR68.20-P-2350LWO |
| 1.2 | Remove center dashboard cover | Model 238 with transmission 716 | AR68.20-P-2350LWP |
| 2 | Unclip climate control operating unit (N58/1) (arrows) and remove | Fig 2 | |
| 3 | Install in the reverse order |
