Remove/Install Rear SAM Control Unit - AR54.21-P-1269LWO
Model 238.3
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of rear SAM control unit (N10/8) | When replacing the rear SAM control unit (N10/8). | |
| AD00.00-P-2000-06LWO | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Open trunk lid | ||
| 4 | Remove trunk floor and trunk recess cover | AR68.30-P-4600LWO | |

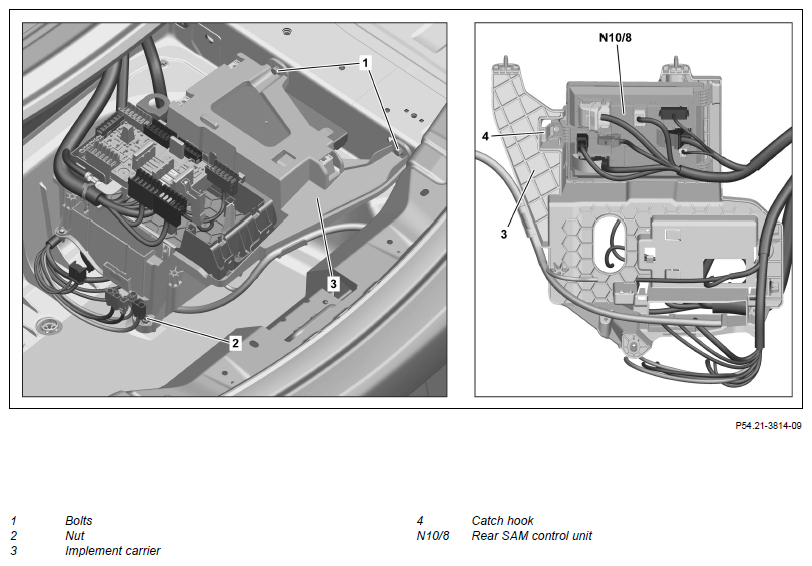

| 5 | Remove bolts (1) | ||
| 6 | Unscrew nut (2) | ||
| 7 | Remove equipment carrier (3) with connected electrical lines and put down | ||
| 8 | Detach all electrical connections from rear SAM control unit (N10/8) | ||
| 9 | Push down the catch hook (4) and remove rear SAM control unit (N10/8) from underside of implement carrier (3) | ||
| 10 | Install in the reverse order |
