Remove/Install Rear Control Unit - AR54.21-P-2009LWO
Model 238.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission rear control unit (N22/6) | When replacing the rear control unit(N22/6). | |
| AD00.00-P-2000-06LWO | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove trunk floor and front cover in trunk | AR68.30-P-4600LWO | |

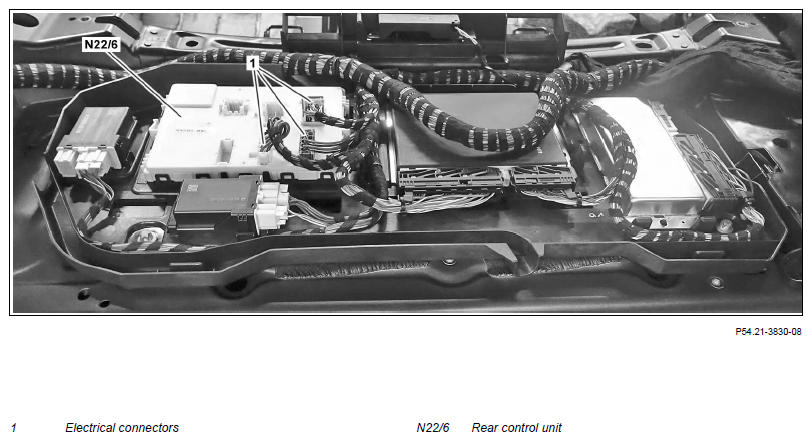

| 4 | Separate electrical connections (1) | ||
| 5 | Release and remove rear control unit (N22/6) | ||
| 6 | Install in the reverse order | ||
| 7 | Normalize rear window lifter |
