Remove/Install Parking System Control Unit - AR54.65-P-0018LWO

Model 238.3

With Code 235 (Parking Pilot)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Commission parking system control unit (N62)	When replacing parking system control unit (N62).
			AD00.00-P-2000-06LWO
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
3.1	Remove subwoofer from trunk	Model 238.3 with code 235 (Parking Pilot) with code 811 (Advanced sound system)	AR82.62-P-7841LWE
3.2	Remove left side load compartment lining	Model 238.3 with code 235 (Parking Pilot) except code 811 (Advanced sound system)	AR68.30-P-4800LWO

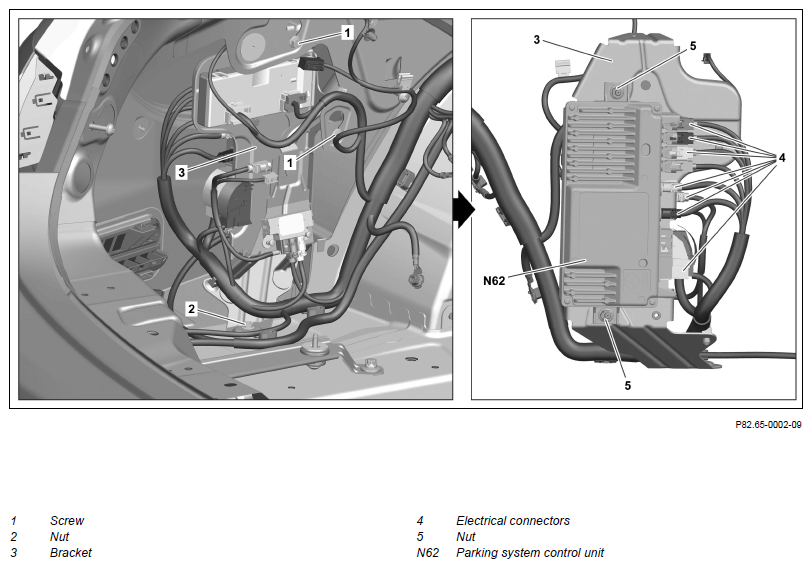

4	Unscrew nut (2)
5	Unscrew screws/bolts (1) and remove bracket (3) with control units and place to one side	The electrical connectors need not be detached. The number of control units installed on the bracket (3) can vary depending on the vehicle equipment installed.
6	Disconnect electrical connections (4)	The number of electrical connections (4) may vary depending on the vehicle equipment involved.
7	Unscrew nuts (5) and remove parking system control unit (N62) from bracket (3)
8	Install in the reverse order
